Home Fixtures & Fittings Storage

Kitchen Storage

Note: Carcase sizes given are internal dimensions in width x depth x height.

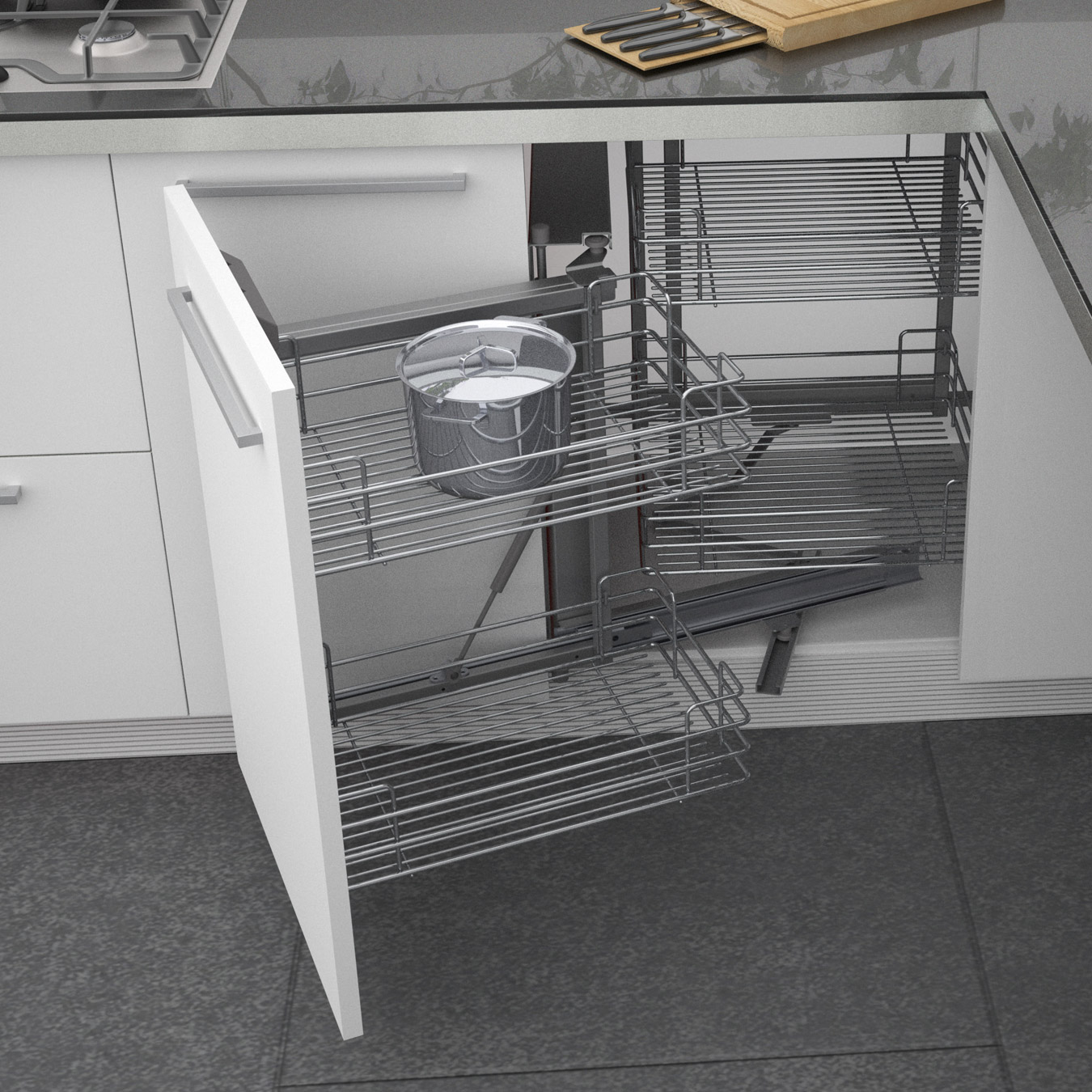

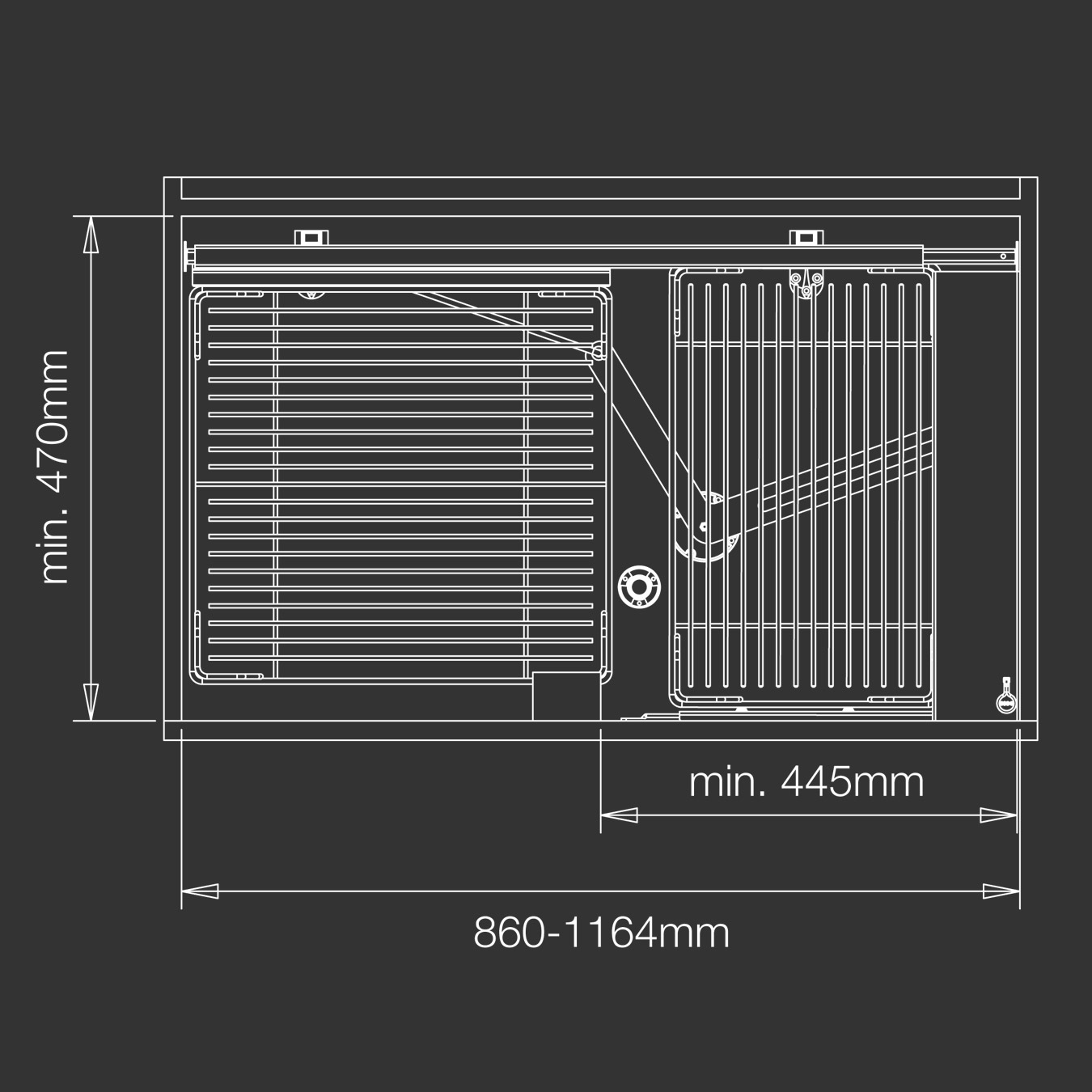

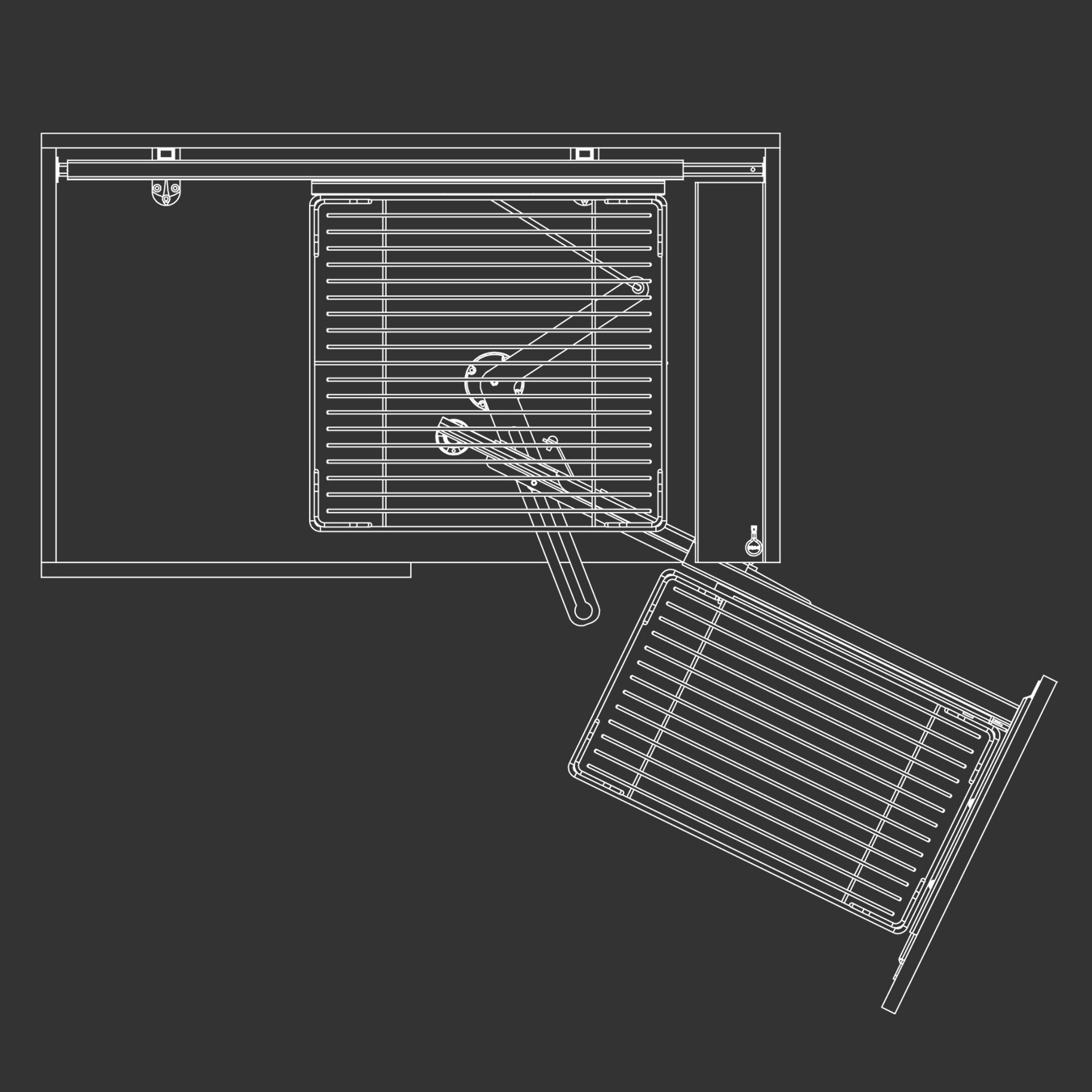

Magic Corner

Magic Corner Unit

  • Features: Self-opening and soft-closing.
  • Options: Chrome baskets.
CodeDescriptionMin Carcase sizeLoading
MCUSCLMagic corner, 860x450mm,
860x470x580mm15kg for front,
20kg for corner pullout
MCUSCRMagic corner, 860x450mm,
silver/chrome baskets, right hand		860x470x580mm15kg for front,
20kg for corner pullout

Note: Carcase sizes given are internal dimensions in width x depth x height

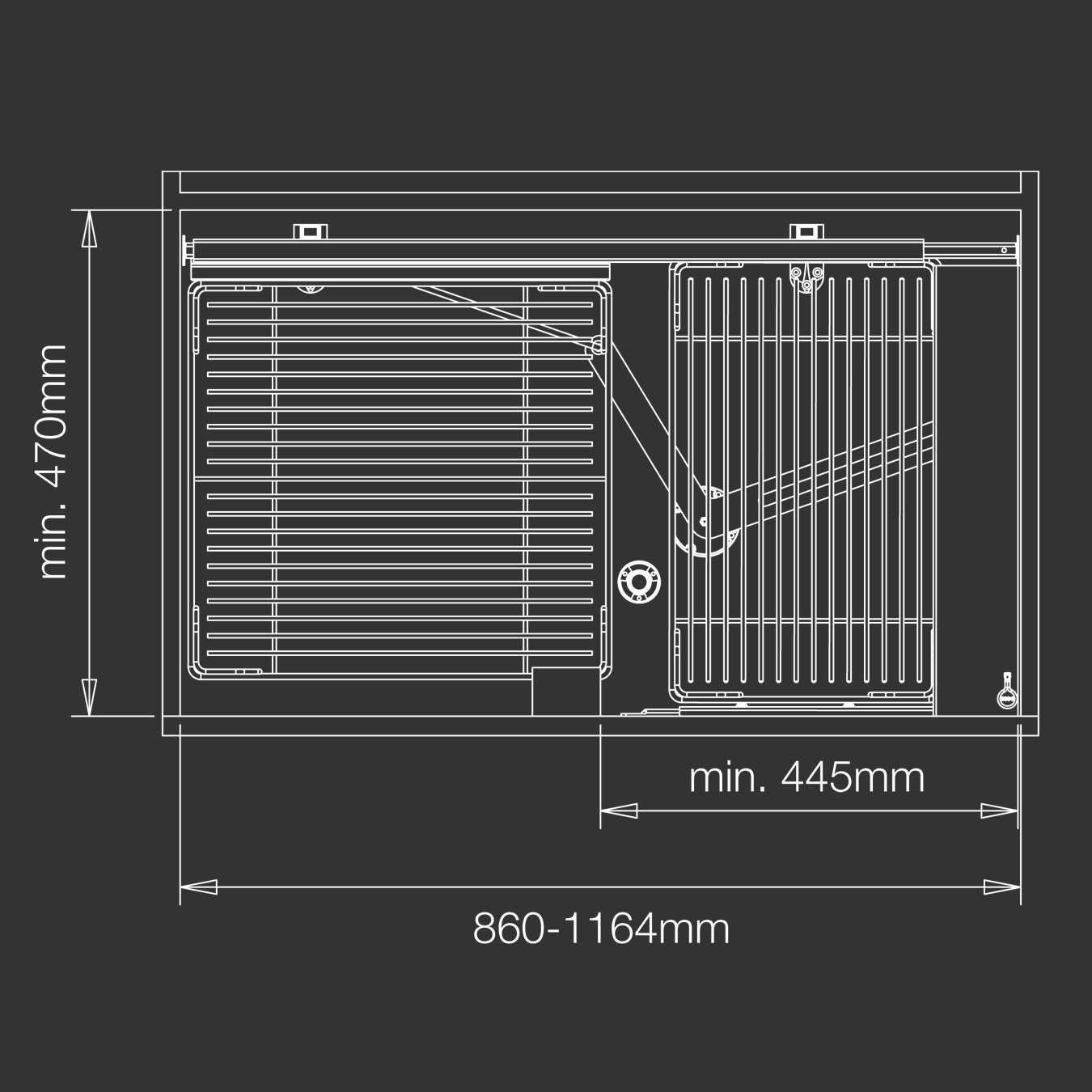

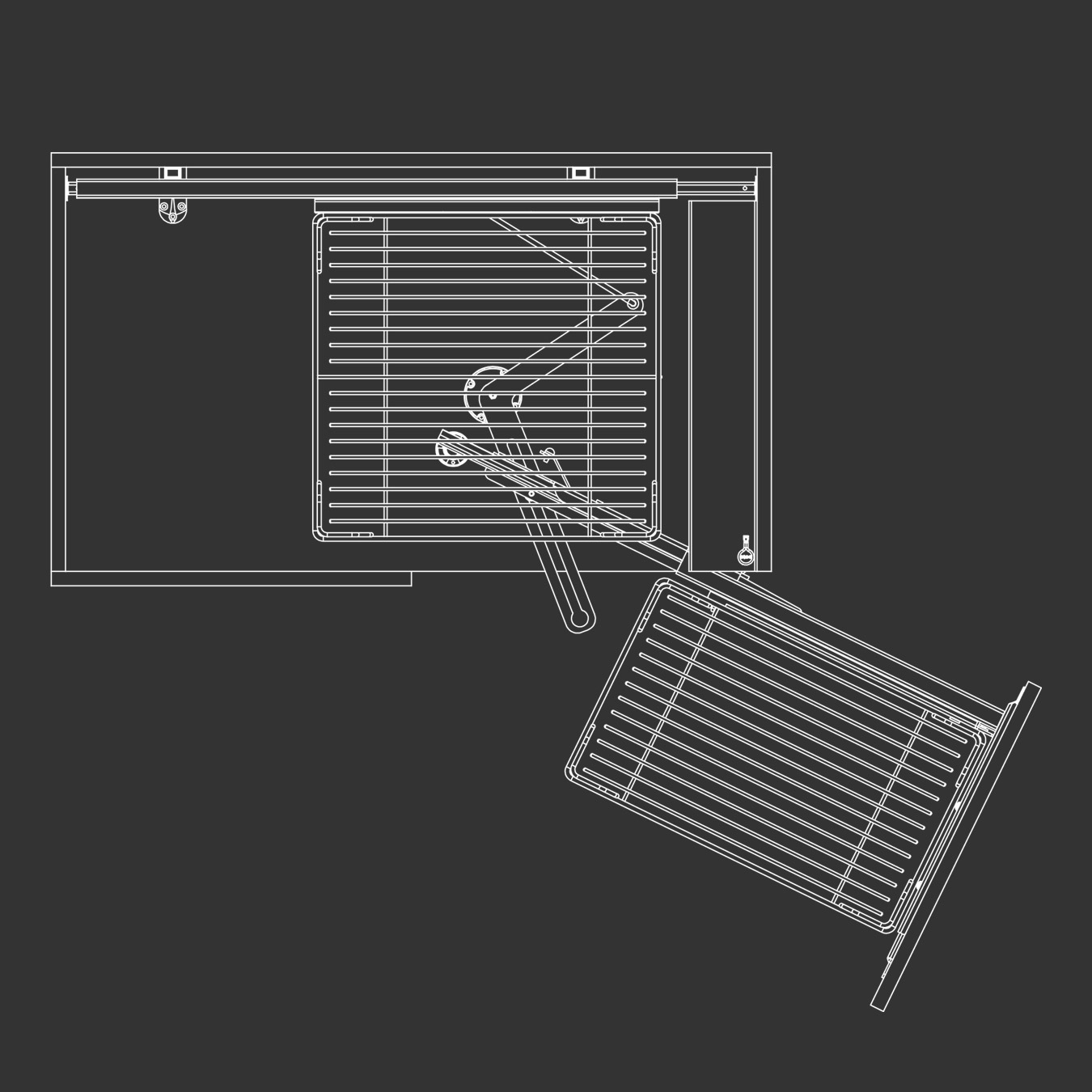

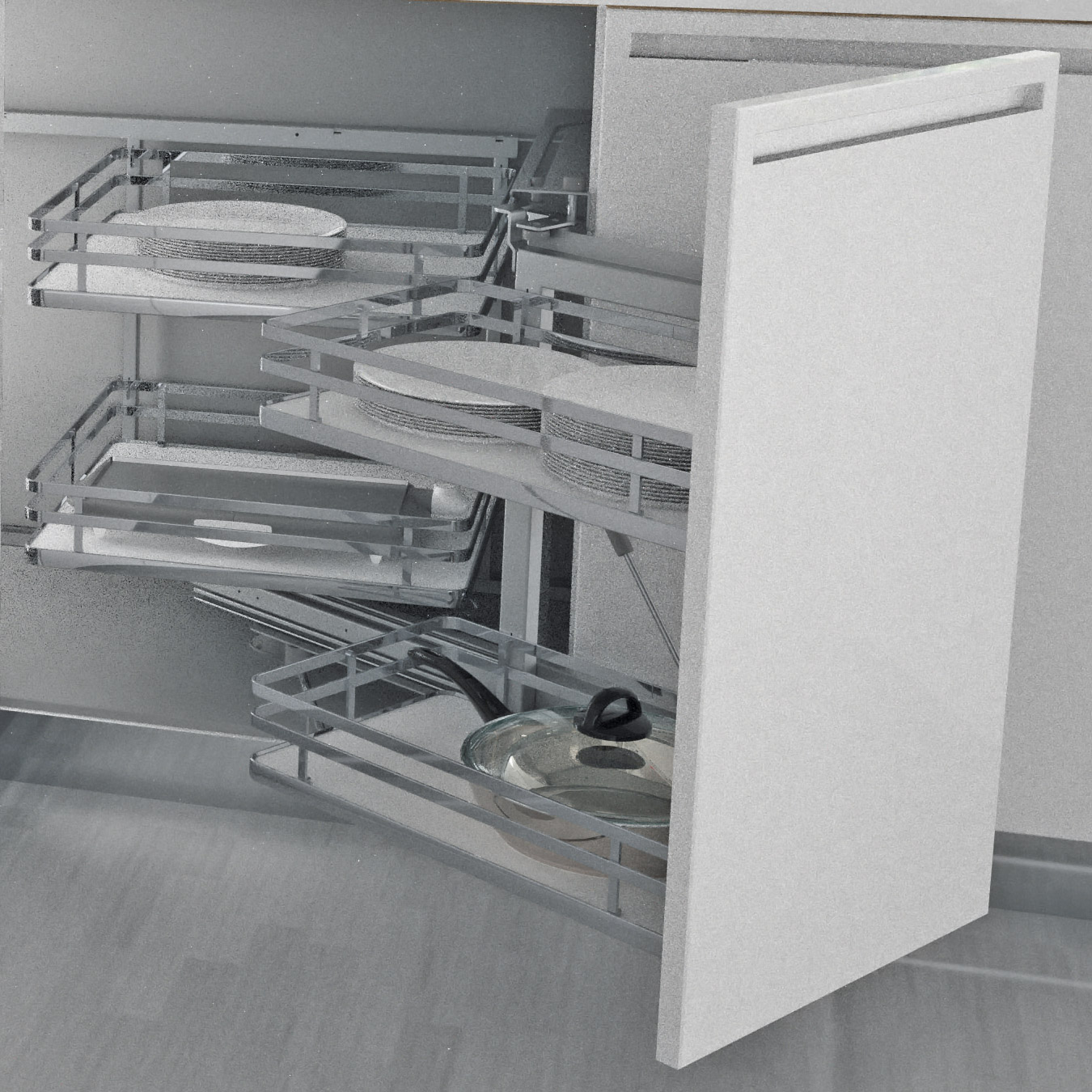

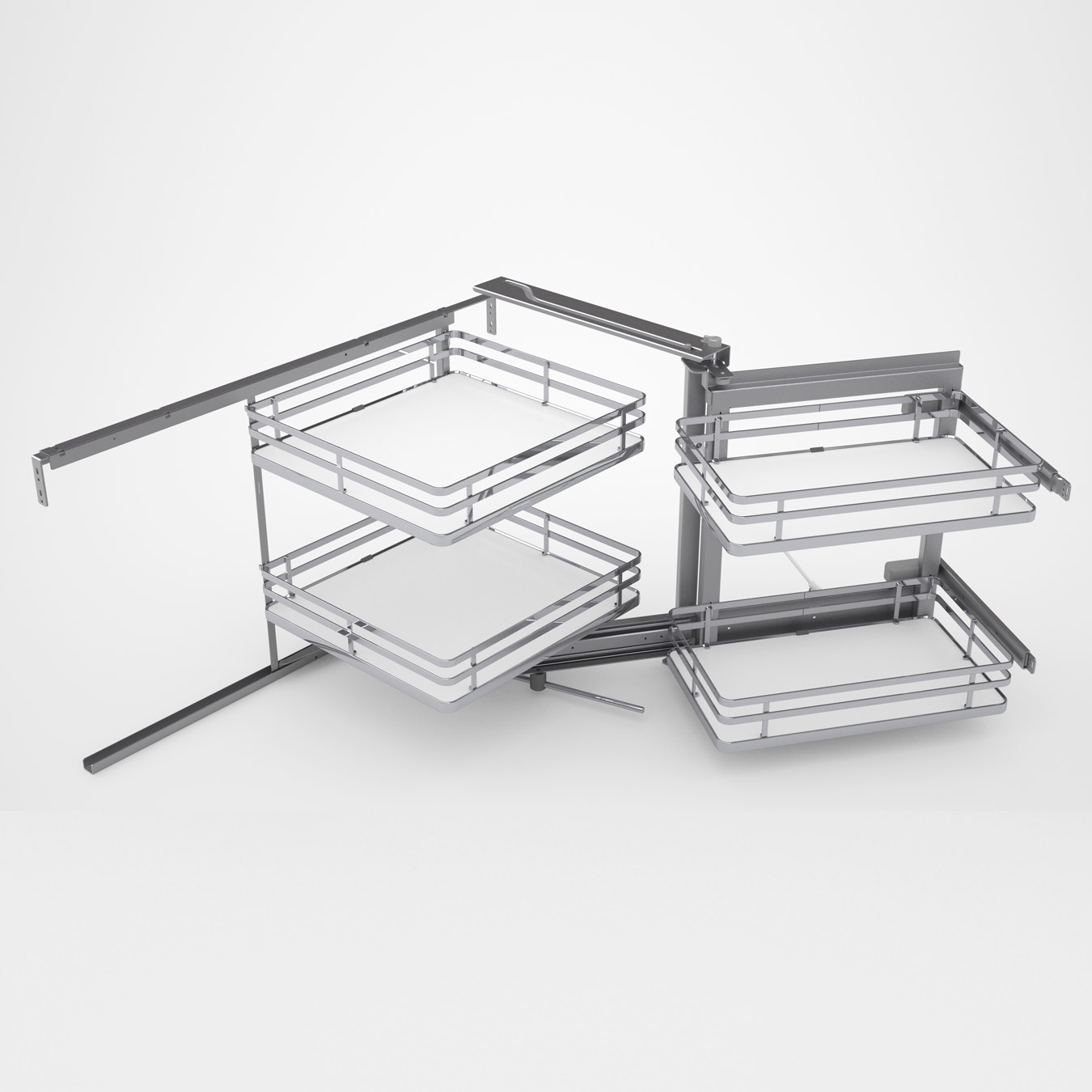

Magic Corner Plus

Infinity Plus Magic Corner Unit

  • Features: Pull-out mechanism for corner cabinet, with soft opening-closing and 4 solid base baskets. Left or right hand. Melamine base with flat bar design.
CodeDescriptionMin Carcase sizeloading
MCUSCLPLMagic corner, 860x450mm, silver/MFC bottom baskets, left hand860x470x580mm15kg for front, 20kg for corner pullout
MCUSCRPLMagic corner, 860x450mm, silver/MFC bottom baskets, right hand860x470x580mm15kg for front, 20kg for corner pullout

Note: Carcase sizes given are internal dimensions in width x depth x height

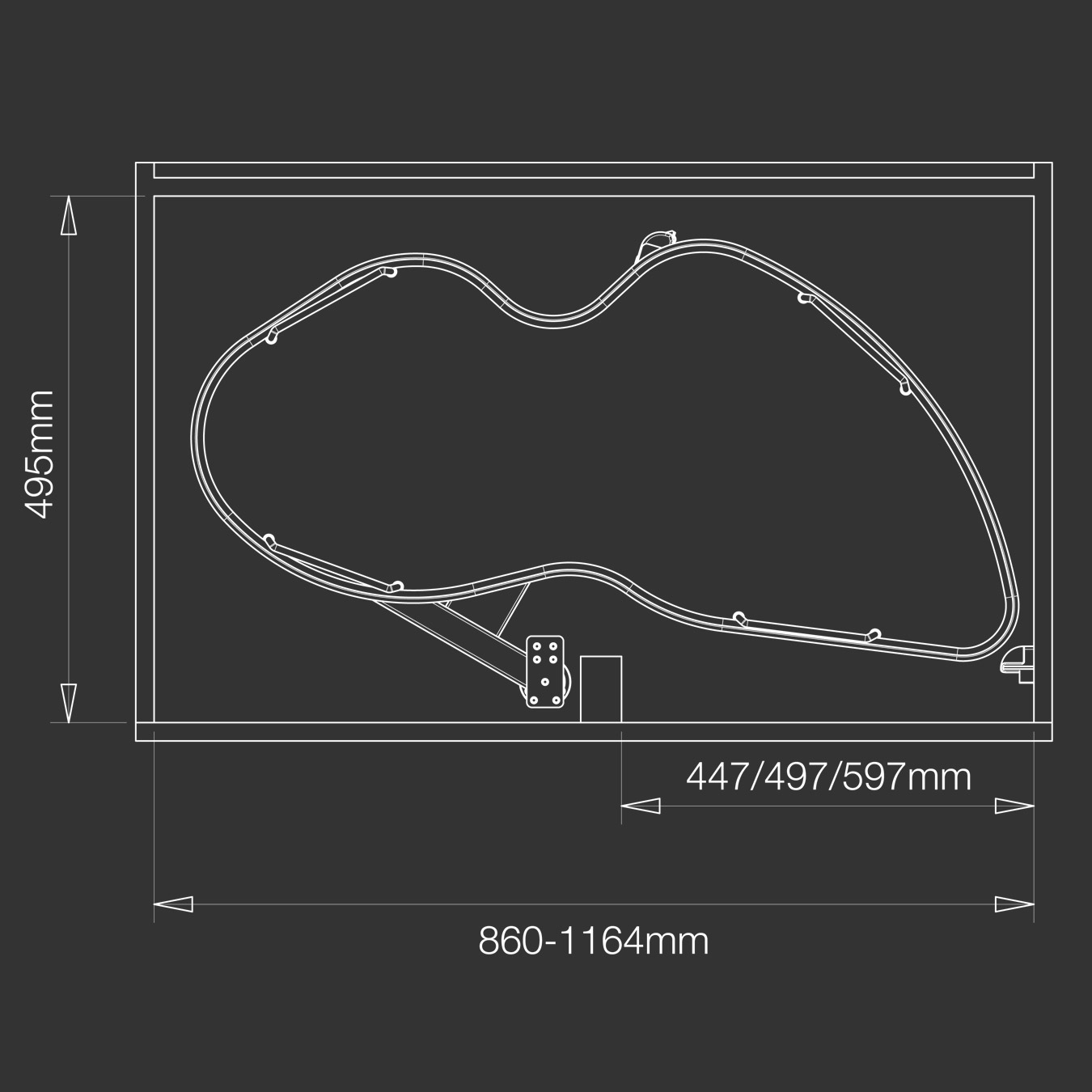

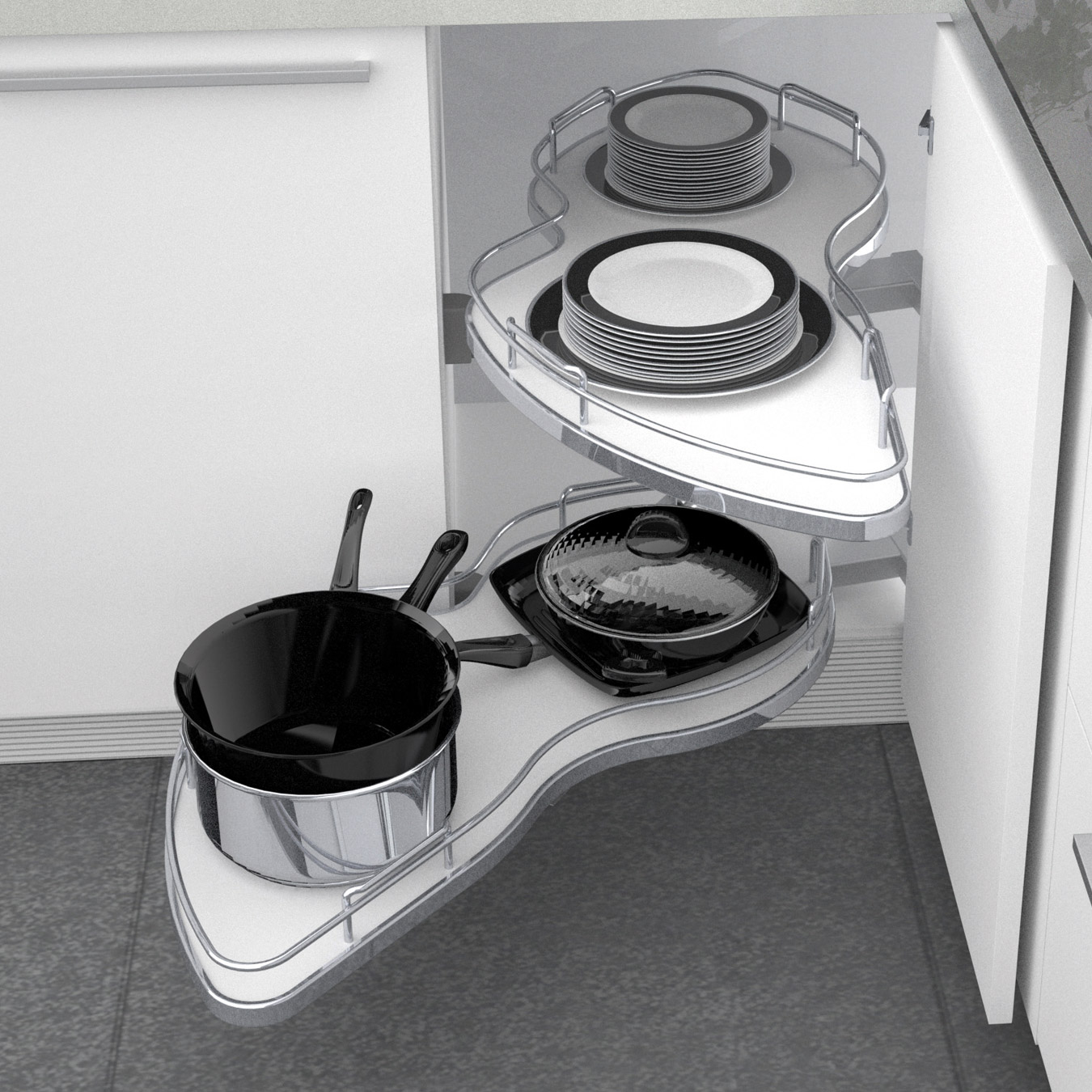

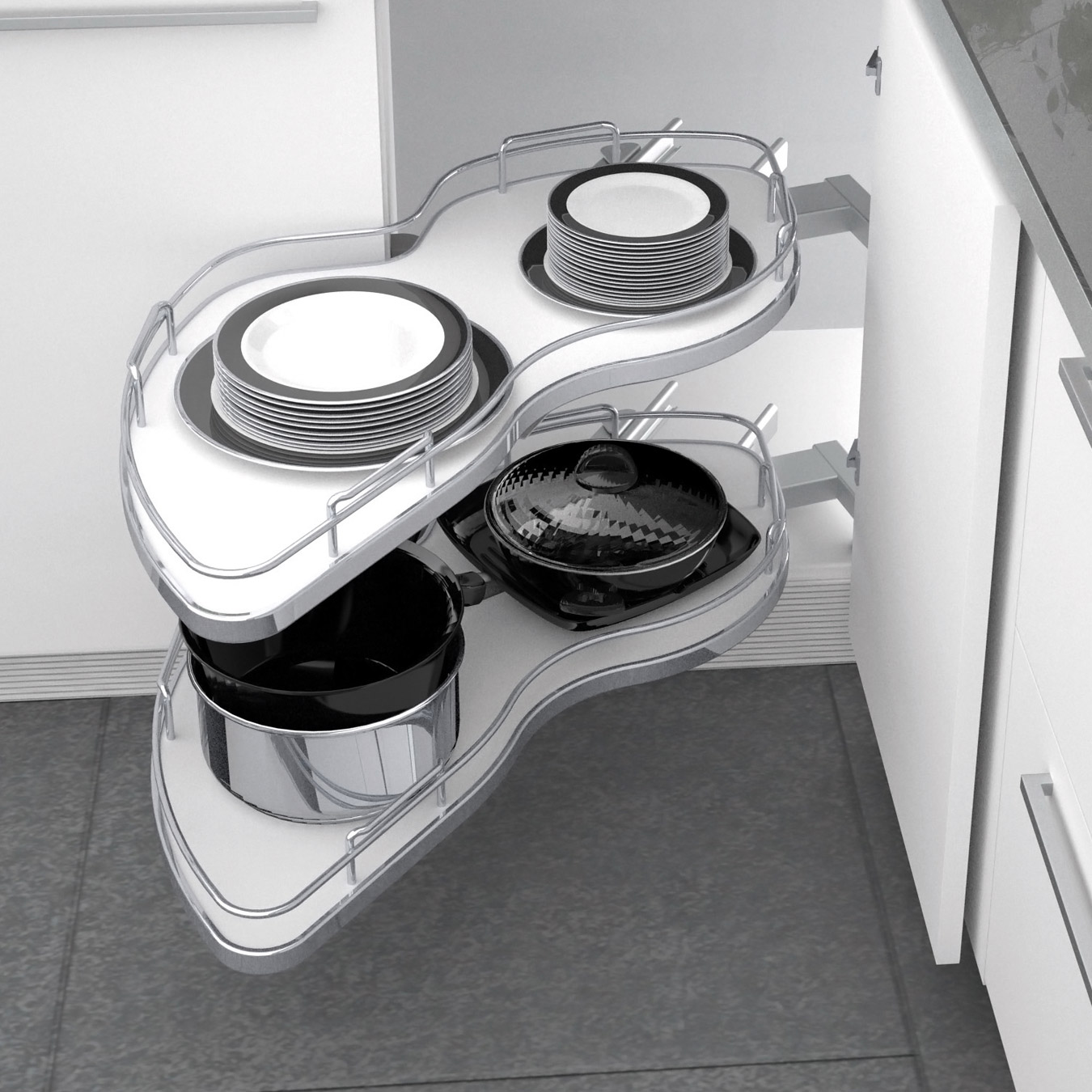

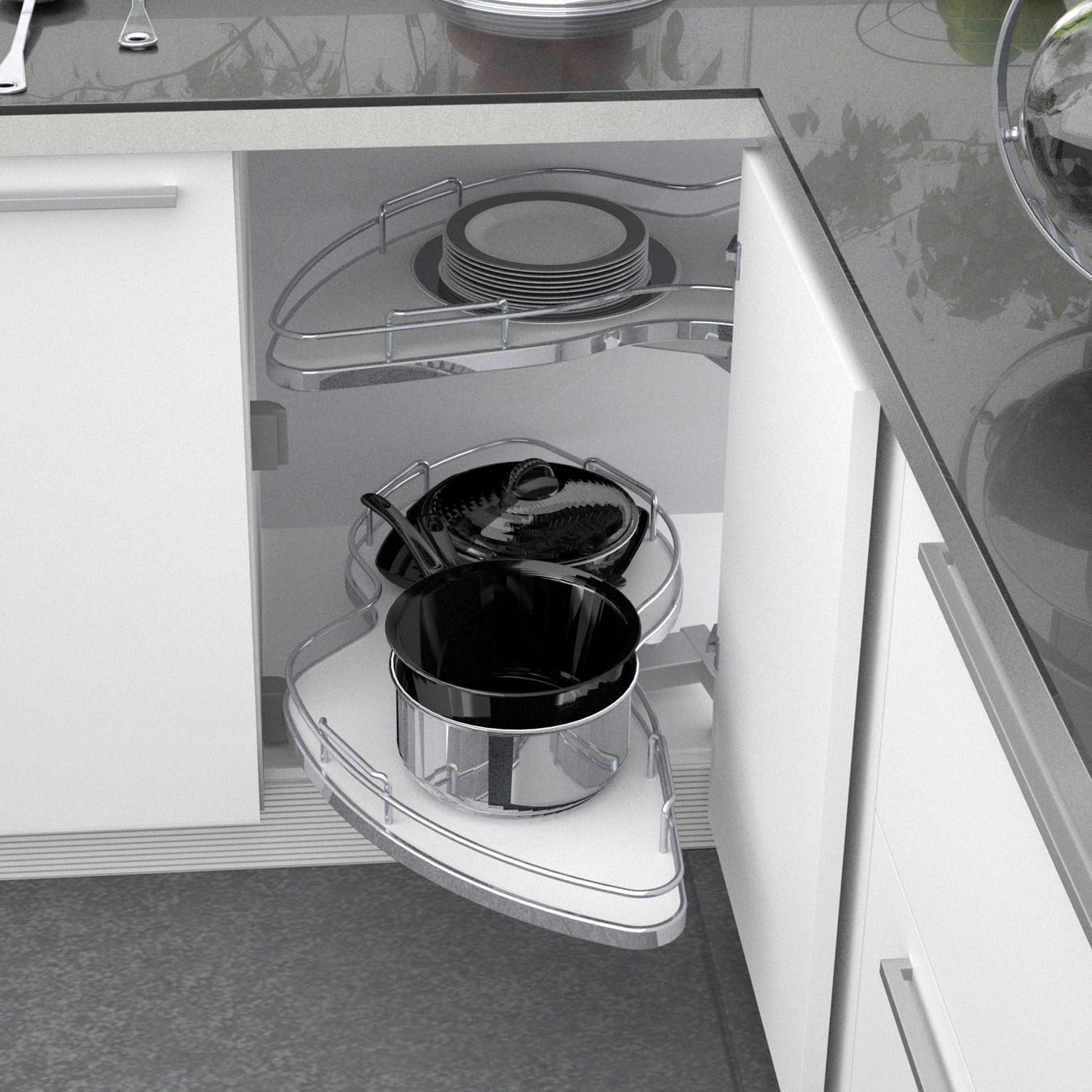

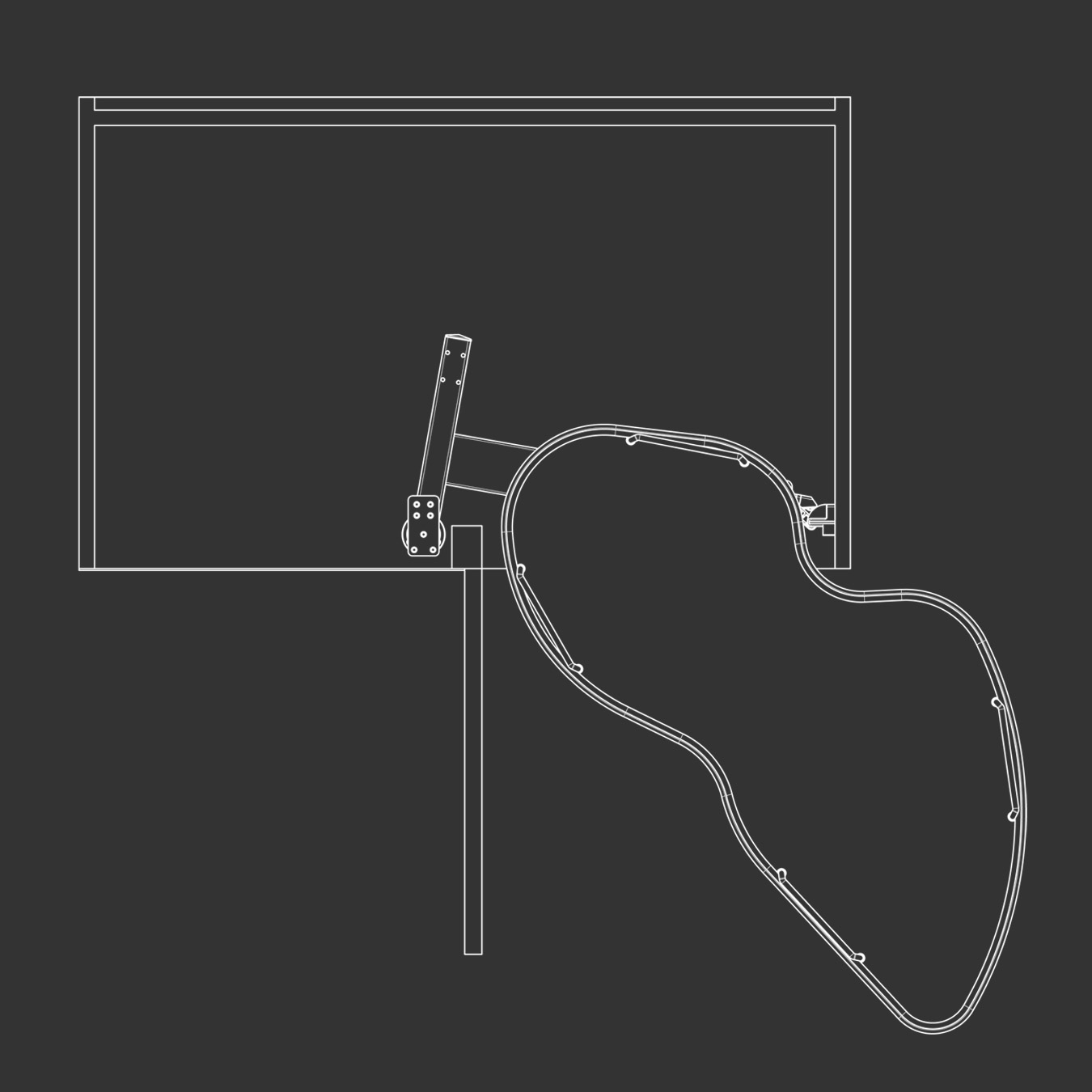

Nuvola Pullout

Nuvola Pullout

  • Features: Soft-closing option available as extra.
  • Options: MFC baskets. 450mm, 500mm & 600mm versions available.
CodeDescriptionMin Carcase sizeLoading
NUV450LNuvola, 450mm door, left hand864x495x600mm20kg per shelf, 40kg per unit
NUV450RNuvola, 450mm door, right hand864x495x600mm20kg per shelf, 40kg per unit
NUV500LNuvola, 500mm door, left hand964x495x600mm20kg per shelf, 40kg per unit
NUV500RNuvola, 500mm door, right hand964x495x600mm20kg per shelf, 40kg per unit
NUV600LNuvola, 600mm door, left hand964x495x600mm20kg per shelf, 40kg per unit
NUV600RNuvola, 600mm door, right hand964x495x600mm20kg per shelf, 40kg per unit
NUVSOFTSoft close for Nuvola

Note: Carcase sizes given are internal dimensions in width x depth x height

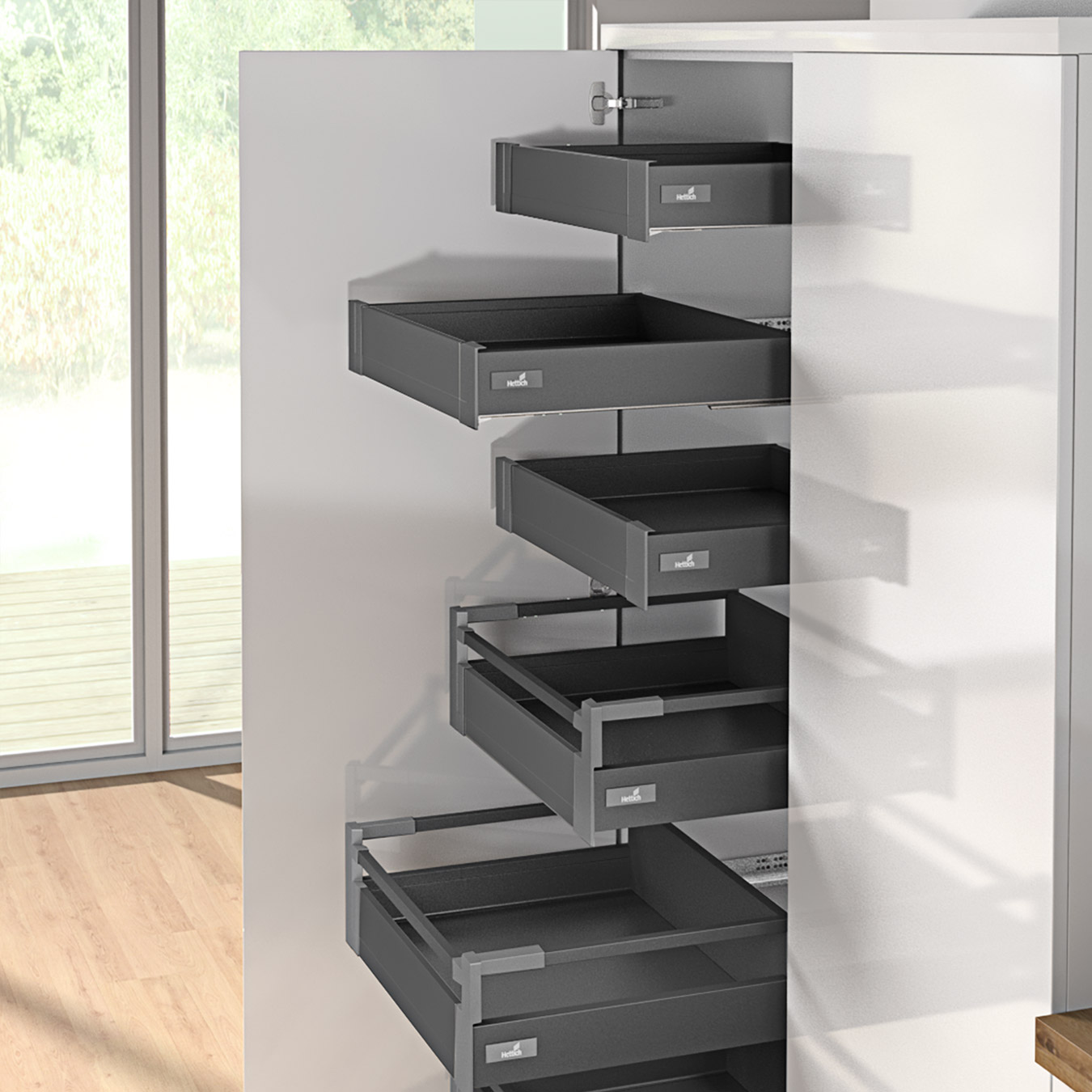

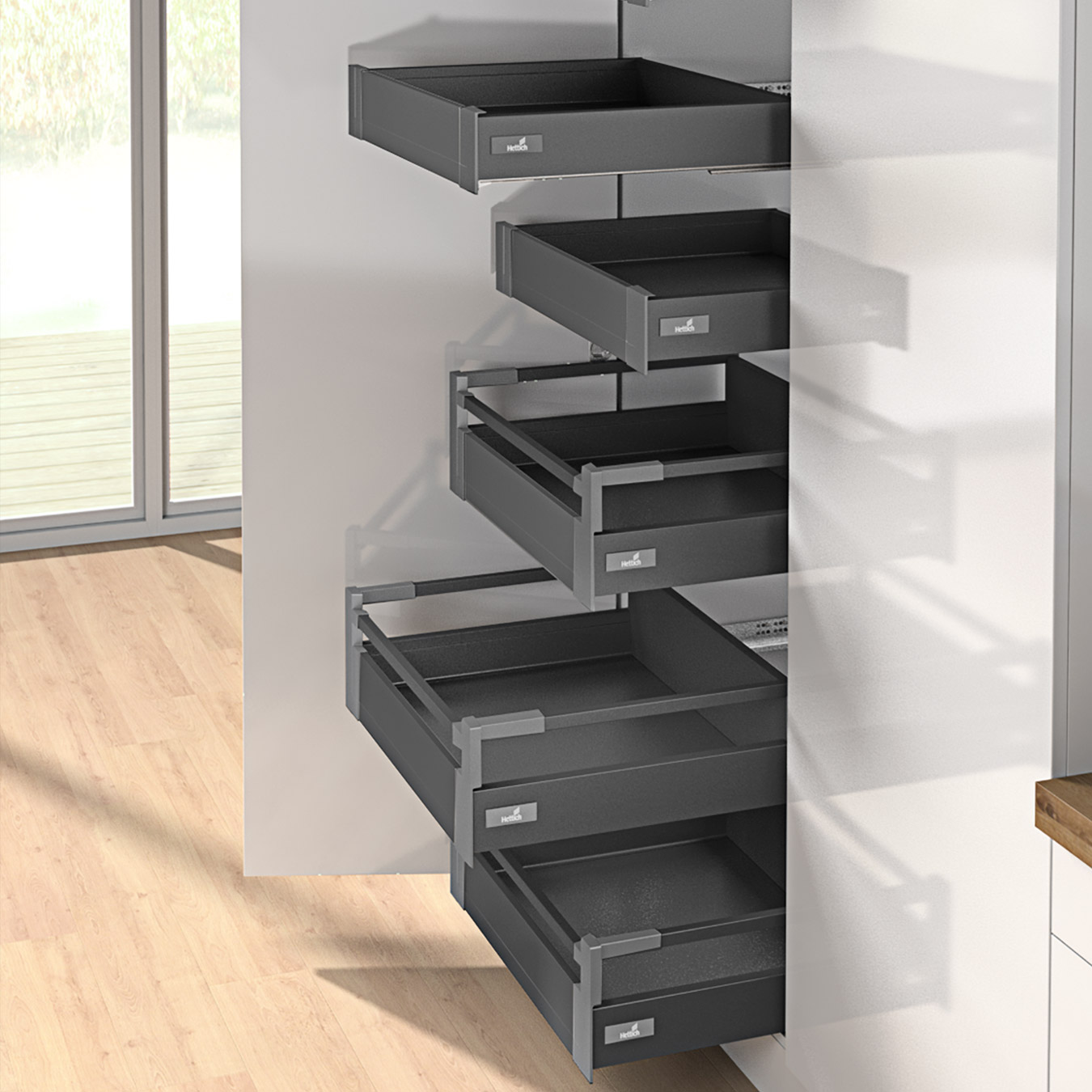

Atira Larder Stack

The drawer system InnoTech Atira makes a feature of its edges and corners and in doing so offers individual potential for creativity.

  • 2 drawer side – profile heights: Standard and Pan
  • Colour: Anthracite
  • Quadro runner systems
  • Sensys zero protrusion hinge 165 degrees
  • Reliable quality and ease of use
  • Endless options to create a simple but stylish storage solution
  • Available in 300mm, 400mm, 500mm and 600mm widths

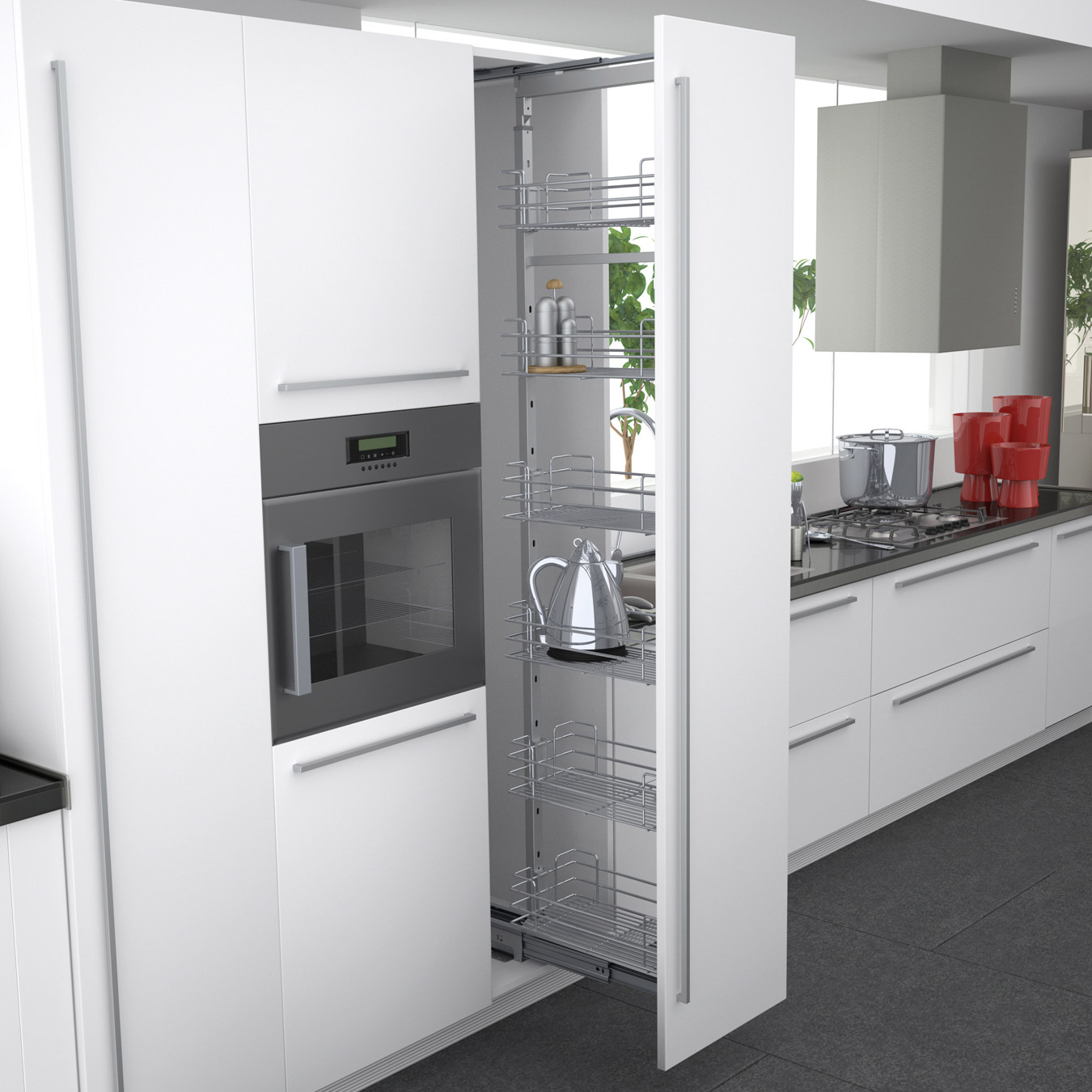

Larder Pullout

Larder Pullout

  • Features: Self-opening and soft-closing. Full extension. Height adjustable: between 1880mm and 2175mm. 5 baskets (additional baskets available).
  • Options: Chrome baskets, MFC baskets.
CodeDescriptionMin Carcase sizeLoading
LF300SCLarder pullout, 300mm, silver / 5 chrome baskets250x455x1880-2175mm90kg
LF400SCLarder pullout, 400mm, silver / 5 chrome baskets350x455x1880-2175mm90kg
LF450SCLarder pullout, 450mm, silver / 5 chrome baskets400x455x1880-2175mm90kg
LF500SCLarder pullout, 500mm, silver / 5 chrome baskets450x455x1880-2175mm90kg
LF600SCLarder pullout, 600mm, silver / 5 chrome baskets550x455x1880-2175mm90kg

Note: Carcase sizes given are internal dimensions in width x depth x height

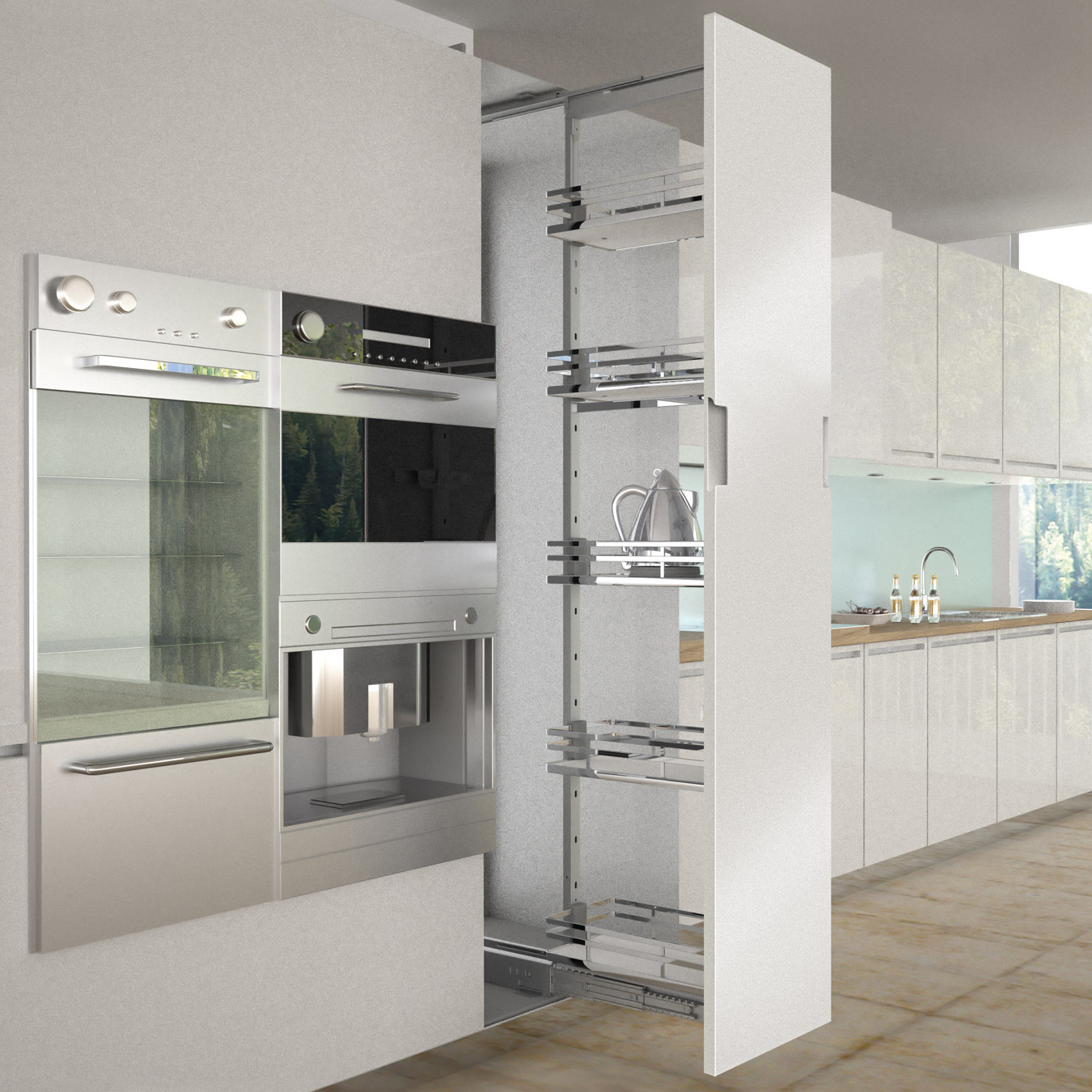

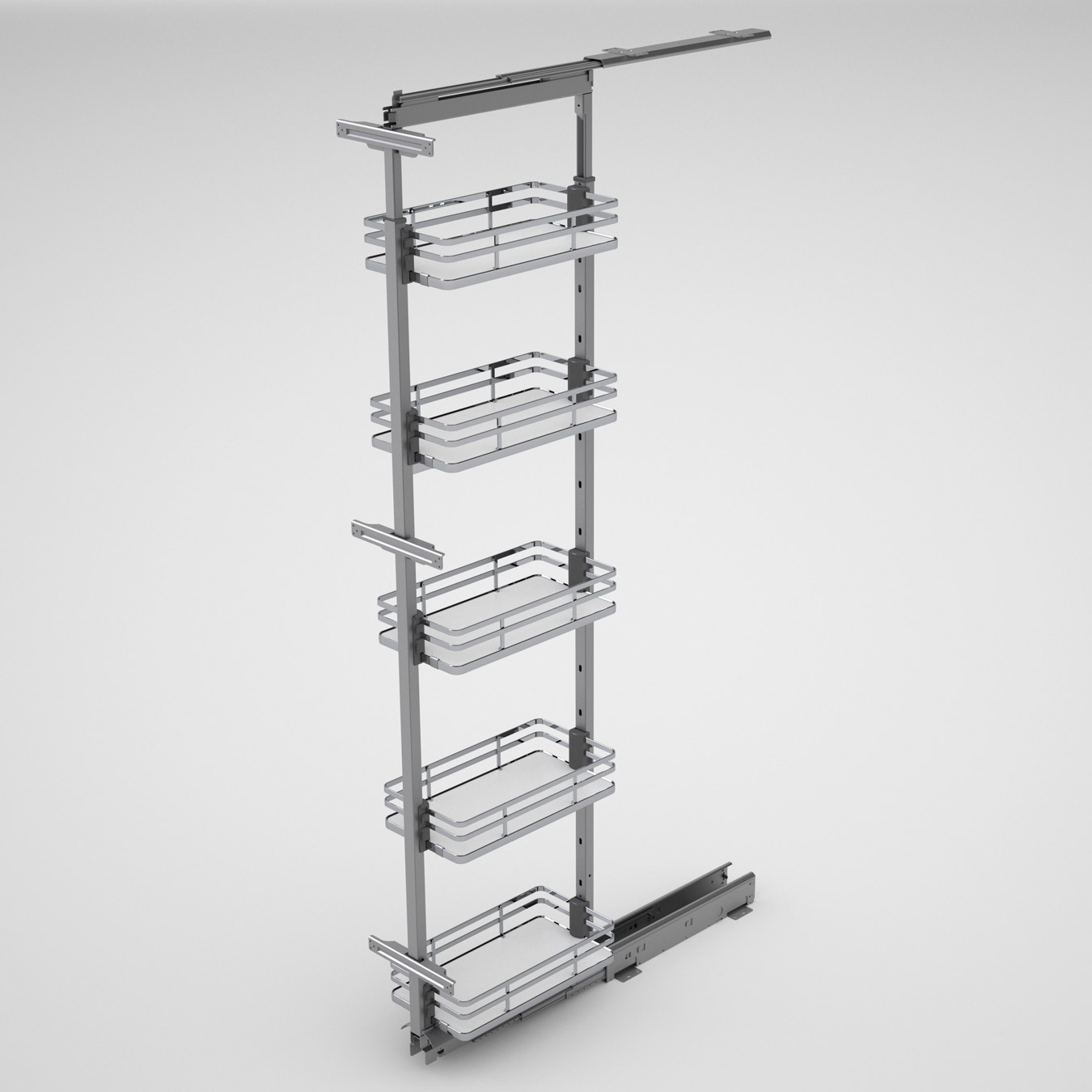

Larder Pullout Plus

Infinity Plus Larder Pullout

  • Features: Soft-closing. Full extension. Height adjustable: between 1880mm and 2175mm. 5 baskets (additional baskets available).
  • Options: MFC baskets.
CodeDescriptionMin Carcase sizeLoading
LF300SMPLLarder pullout, 300mm, silver / 5 MFC bottom baskets250x455x1880-2175mm120kg
LF400SMPLLarder pullout, 400mm, silver / 5 MFC bottom baskets350x455x1880-2175mm120kg
LF450SMPLLarder pullout, 450mm, silver / 5 MFC bottom baskets400x455x1880-2175mm120kg
LF500SMPLLarder pullout, 500mm, silver / 5 MFC bottom baskets450x455x1880-2175mm120kg
LF600SMPLLarder pullout, 600mm, silver / 5 MFC bottom baskets550x455x1880-2175mm120kg

Note: Carcase sizes given are internal dimensions in width x depth x height

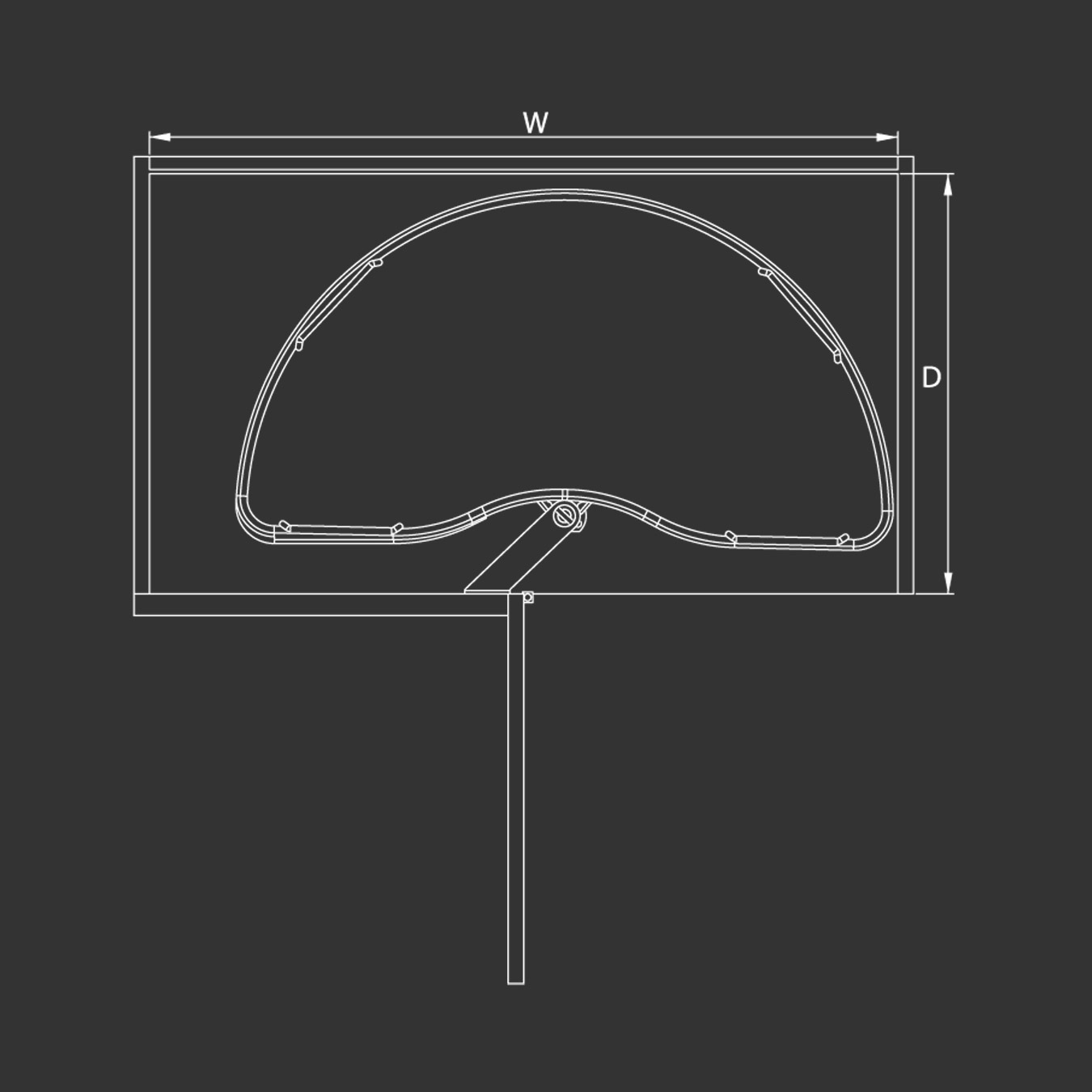

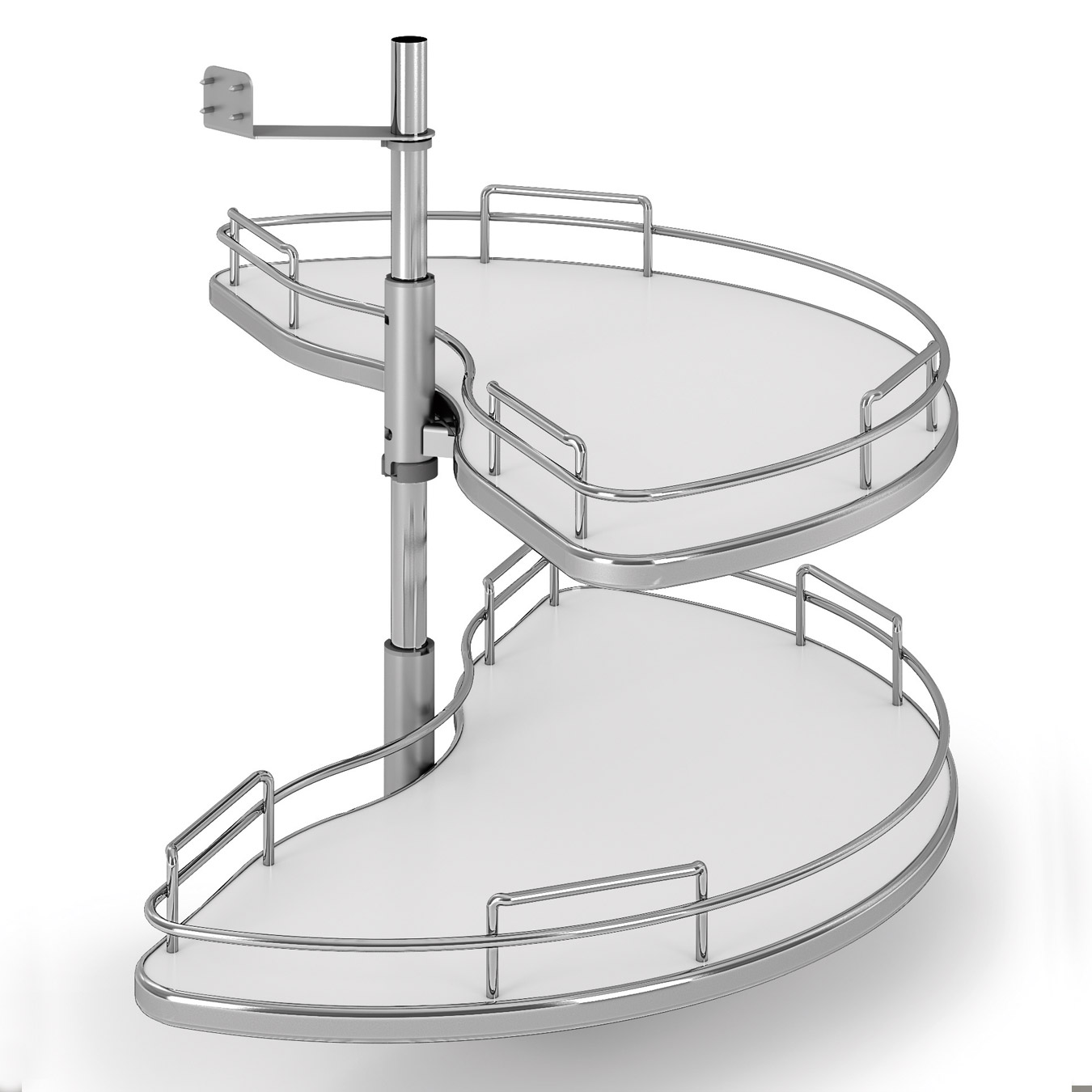

1/2 Carousel

Wire Carousel Infinity Plus

  • Features: Half-Moon solid base shelves for corner cabinet. 2 hand opening shelves.
CodeDescriptionMin Carcase sizeLoading
WC180PL½ carousel760x390x450mm15kg

Note: Carcase sizes given are internal dimensions in width x depth x height

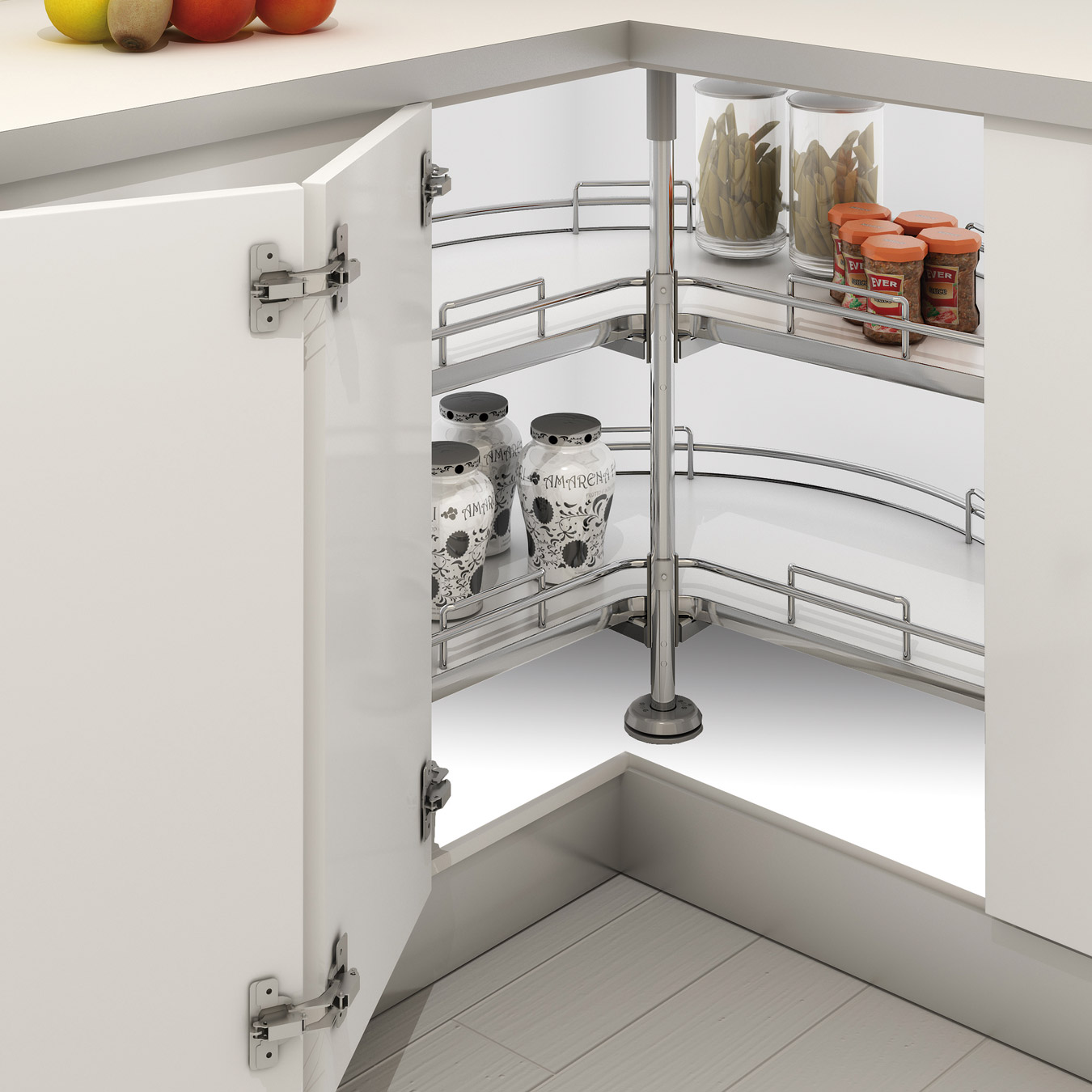

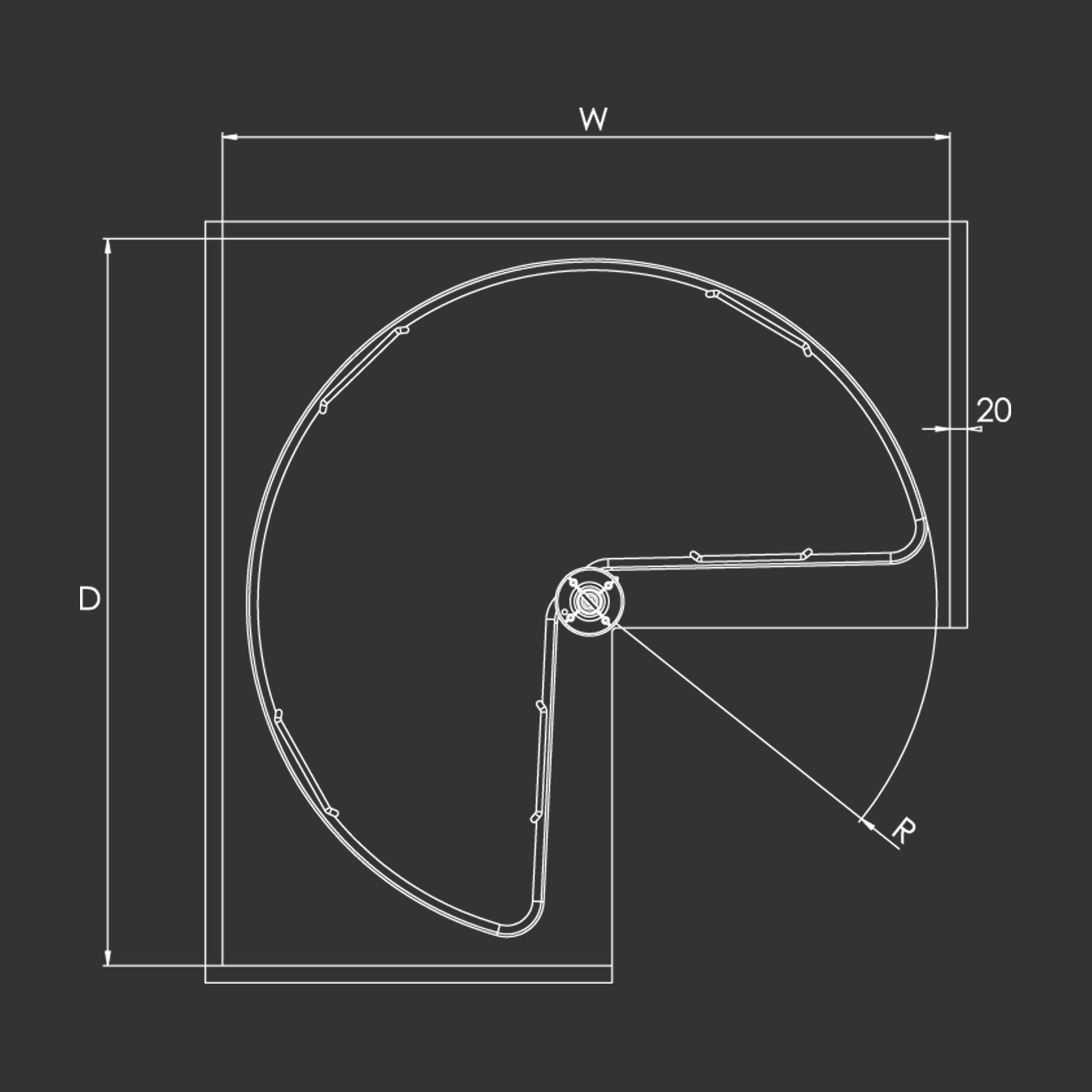

3/4 Carousel

Wire Carousel Infinity Plus

  • Features: Rotating system with 2 solid base baskets, 900x900mm corner base unit.
CodeDescriptionMin Carcase sizeLoading
WC270PL¾ carousel800x800x700mm20kg

Note: Carcase sizes given are internal dimensions in width x depth x height

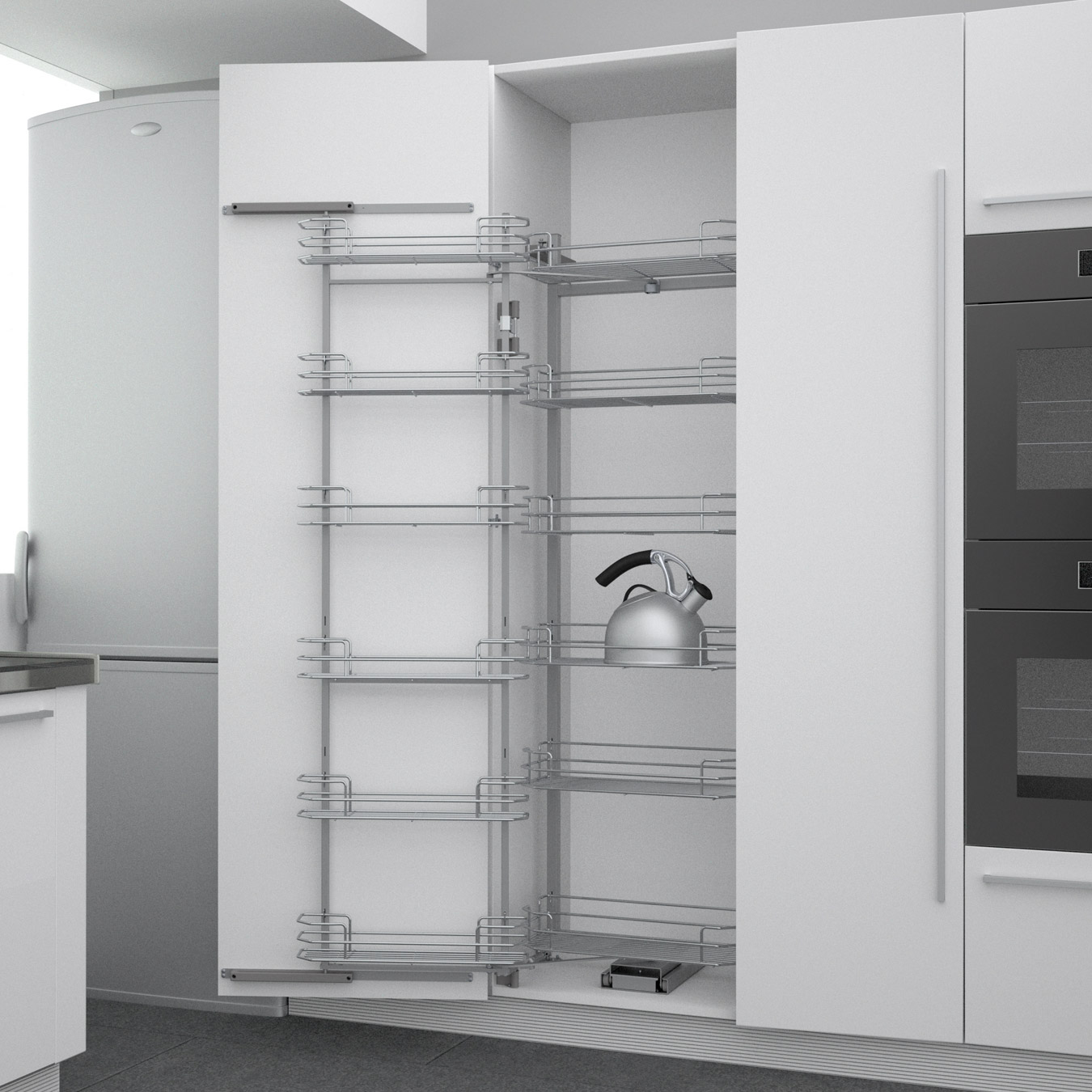

Duetto Pullout

Duetto Pullout

  • Features: Self opening and soft-closing. 6 baskets. Reversible and can be doubled up to make a ‘Chef’s Pantry’. Universal – can be used right or left handed.
  • Options: Chrome baskets.
  • Loading Capacity: 20kg front baskets, 50kg rear baskets.
CodeDescriptionMin Carcase sizeLoading
DP450CDuetto pullout, 450mm, chrome baskets410x470x1800mm20kg for small shelves, 50kg for large shelves
DP500CDuetto pullout, 500mm, chrome baskets460x470x1800mm20kg for small shelves, 50kg for large shelves
DP600CDuetto pullout, 600mm, chrome baskets560x470x1800mm20kg for small shelves, 50kg for large shelves

Note: Carcase sizes given are internal dimensions in width x depth x height

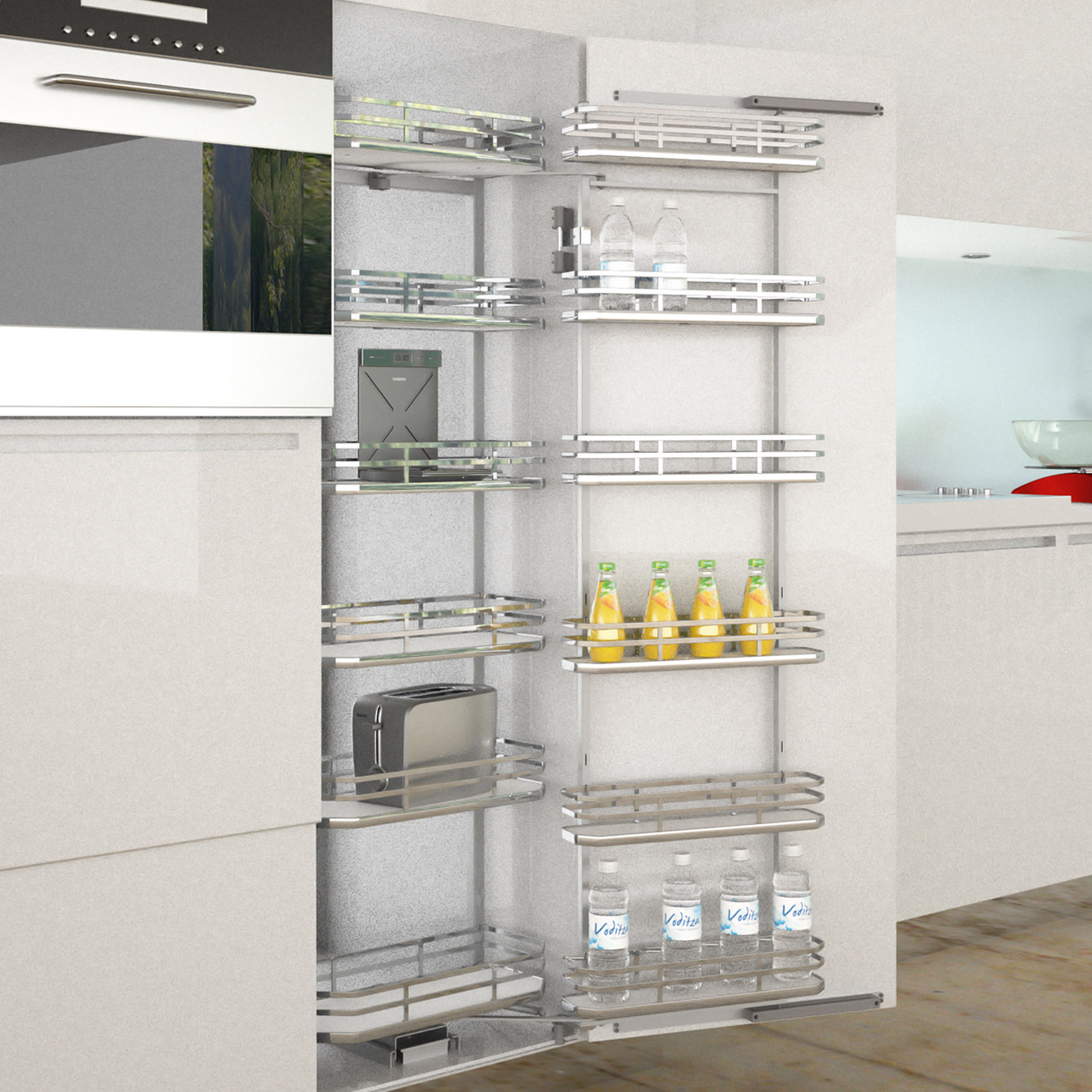

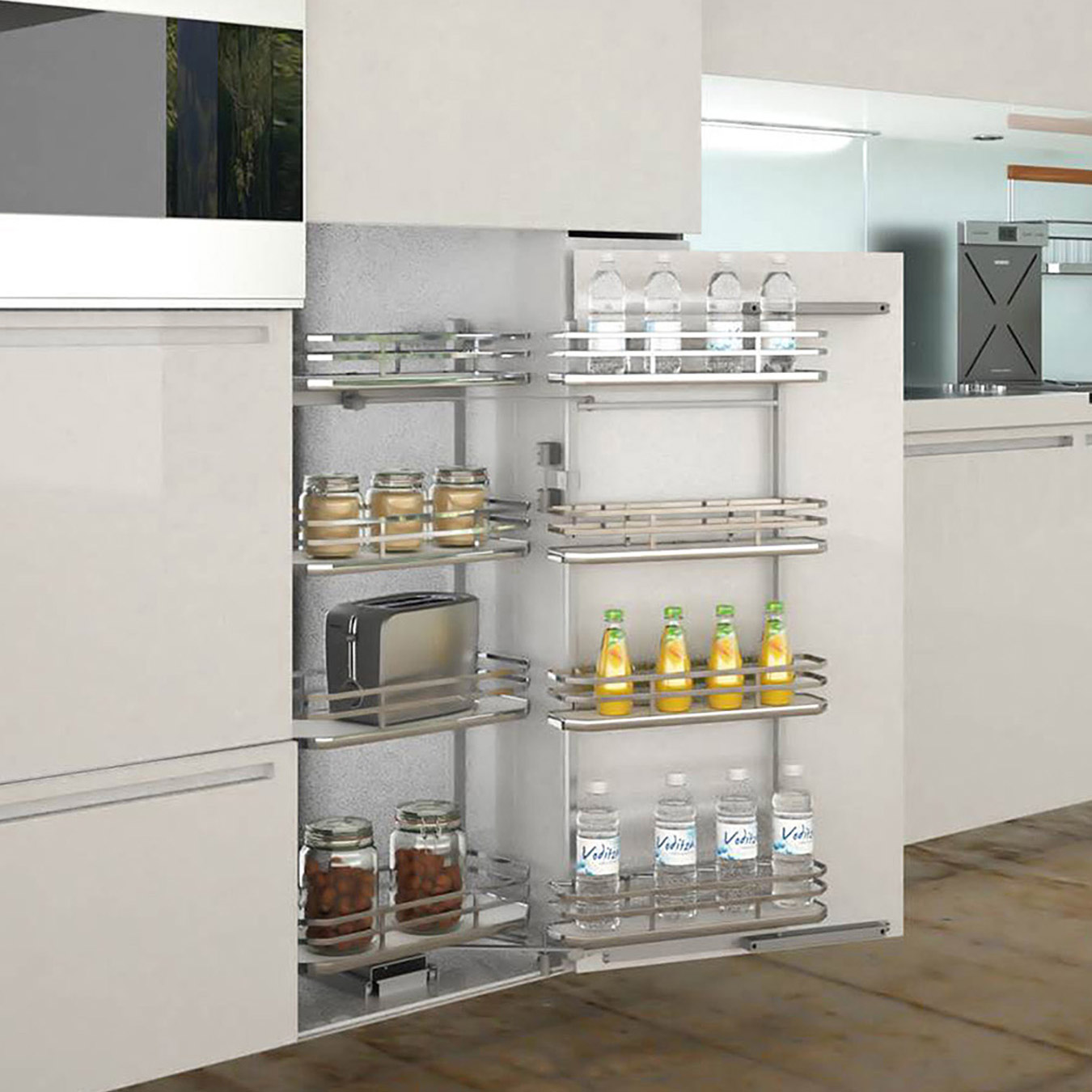

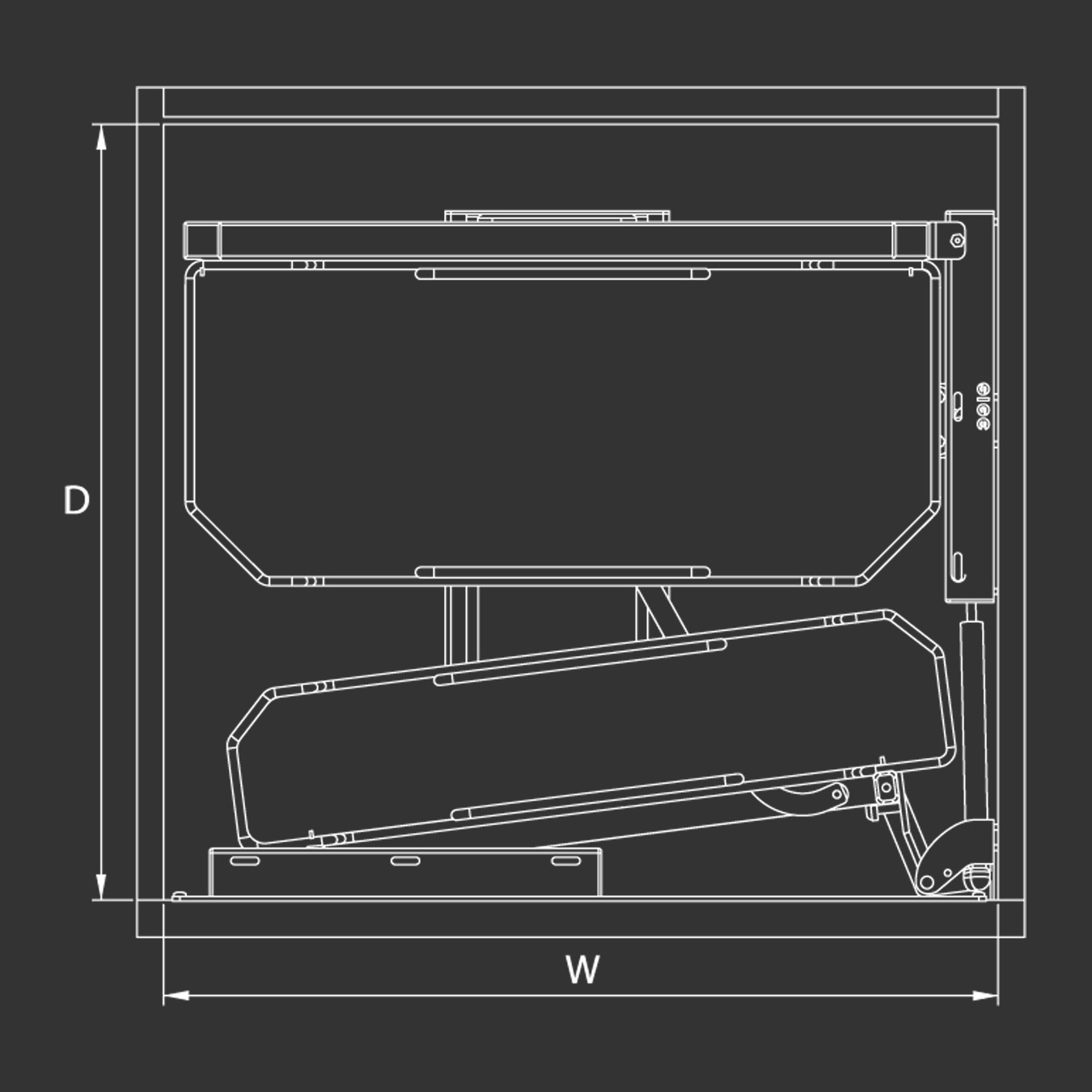

Duetto Pullout Plus

  • Features: Pull-out tandem dispenser, short (universal), with soft opening-closing and solid base baskets.
CodeDescriptionMin Carcase sizeLoading
DP450PL/1215Duetto pullout, 450mm silver/MFC bottom baskets410x470x1215mm20kg for small shelves, 50kg for large shelves
DP500PL/1215Duetto pullout, 500mm silver/MFC bottom baskets460x470x1215mm20kg for small shelves, 50kg for large shelves
DP600PL/1215Duetto pullout, 600mm silver/MFC bottom baskets560x470x1215mm20kg for small shelves, 50kg for large shelves

Note: Carcase sizes given are internal dimensions in width x depth x height

Duetto Pullout Plus Larder

  • Features: Pull-out tandem dispenser, tall (universal), with soft opening-closing and 12 solid base baskets.
CodeDescriptionMin Carcase sizeLoading
DP450G PLDuetto pullout, 450mm silver/MFC bottom baskets 410x470x1800mm20kg for small shelves, 50kg for large shelves
DP500G PLDuetto pullout, 500mm silver/MFC bottom baskets 460x470x1800mm20kg for small shelves, 50kg for large shelves
DP600G PLDuetto pullout, 600mm silver/MFC bottom baskets 560x470x1800mm20kg for small shelves, 50kg for large shelves

Note: Carcase sizes given are internal dimensions in width x depth x height

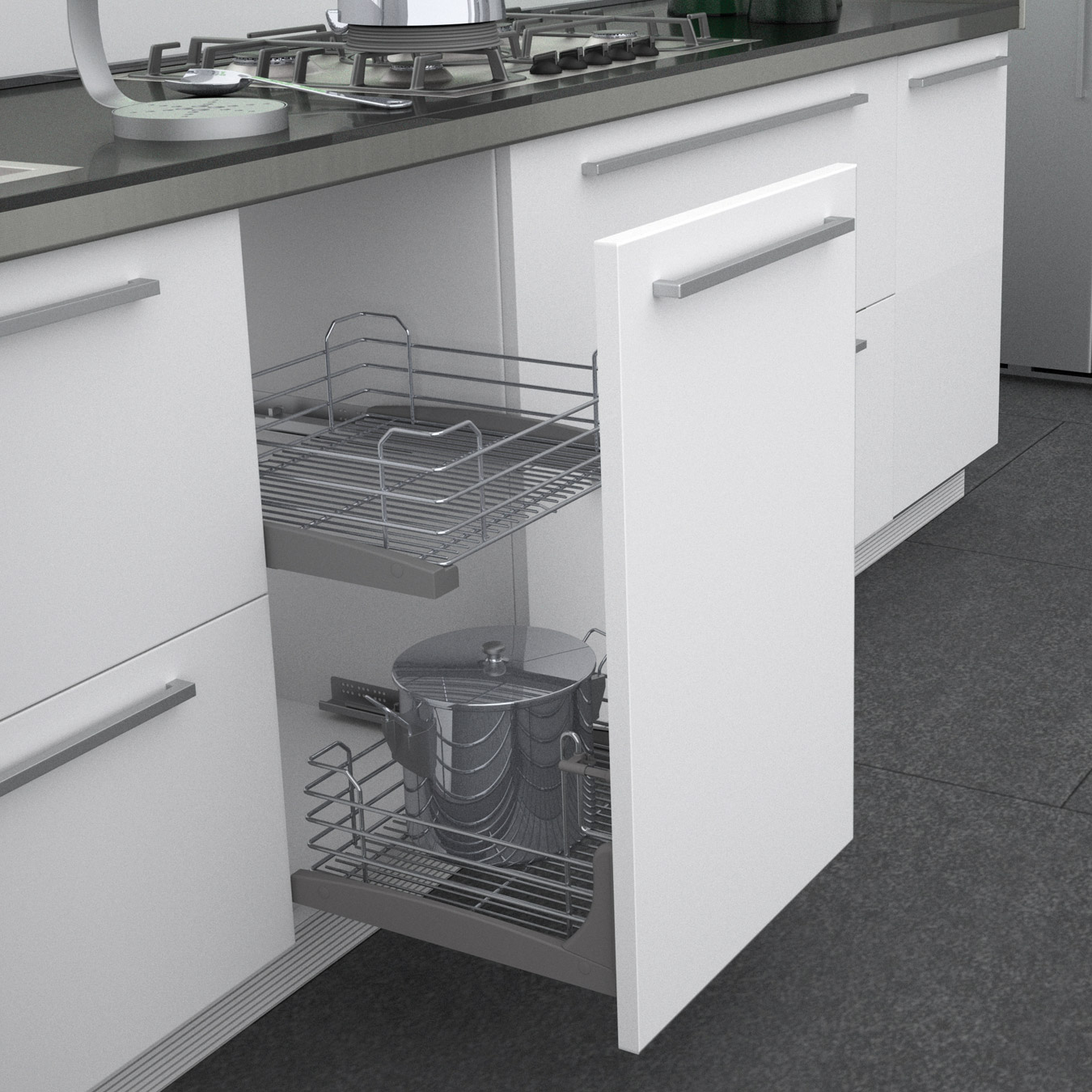

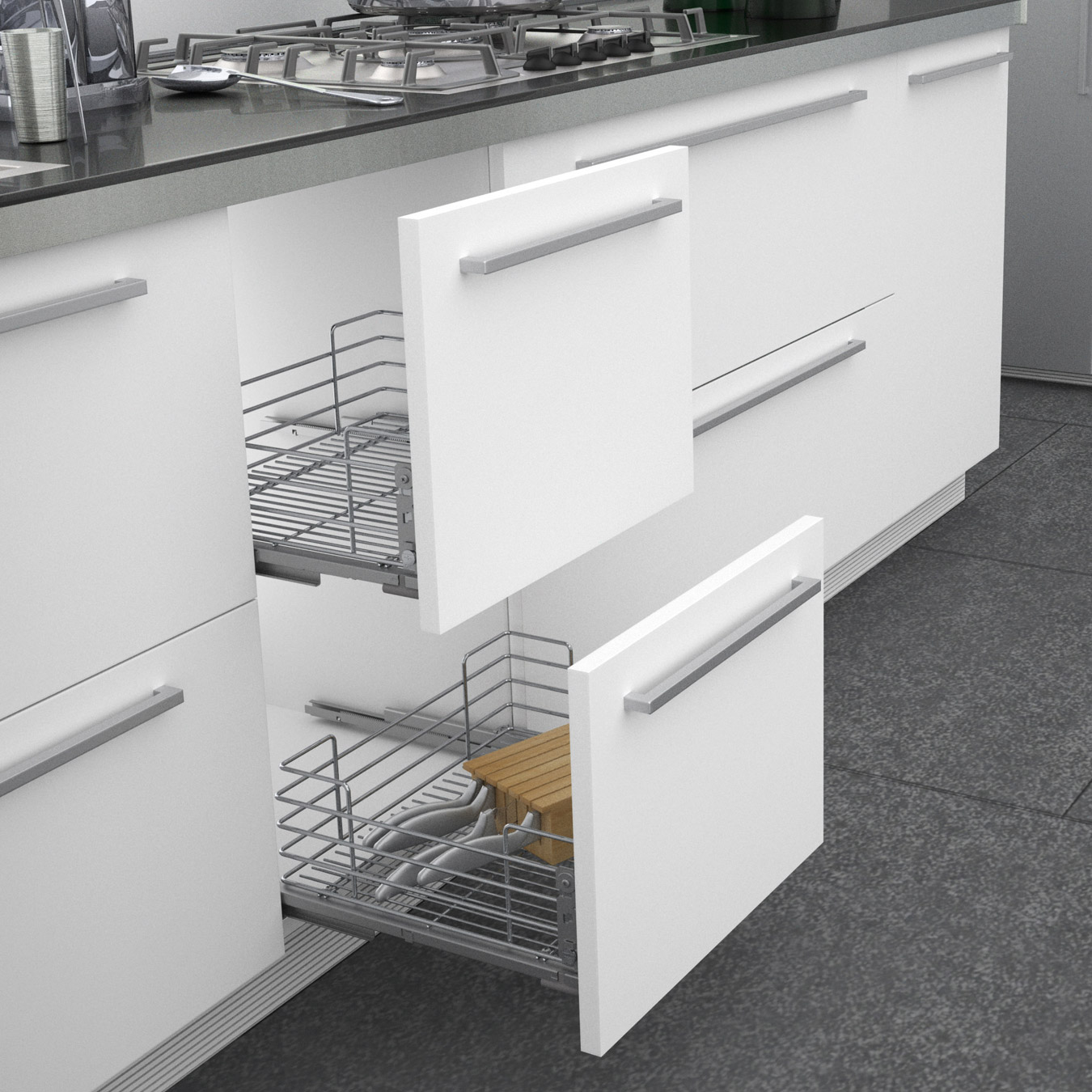

Pan Drawer and Base Unit Pullouts

  • Features: Soft closing. Full extension.
  • Options: Chrome baskets.
CodeDescriptionMin Carcase sizeLoading
PD300CPan drawer with full extension, 300mm264x455mm30kg
PD400CPan drawer with full extension, 400mm364x455mm30kg
PD500CPan drawer with full extension, 500mm464x455mm30kg
PD600CPan drawer with full extension, 600mm564x455mm30kg
BU300CBase unit pullout with full extension, soft close, 300mm, chrome264x455mm30kg
BU400CBase unit pullout with full extension, soft close, 400mm, chrome364x455mm30kg
BU500CBase unit pullout with full extension, soft close, 500mm, chrome464x455mm30kg
BU600CBase unit pullout with full extension, soft close, 600mm, chrome564x455mm30kg

Note: Carcase sizes given are internal dimensions in width x depth x height

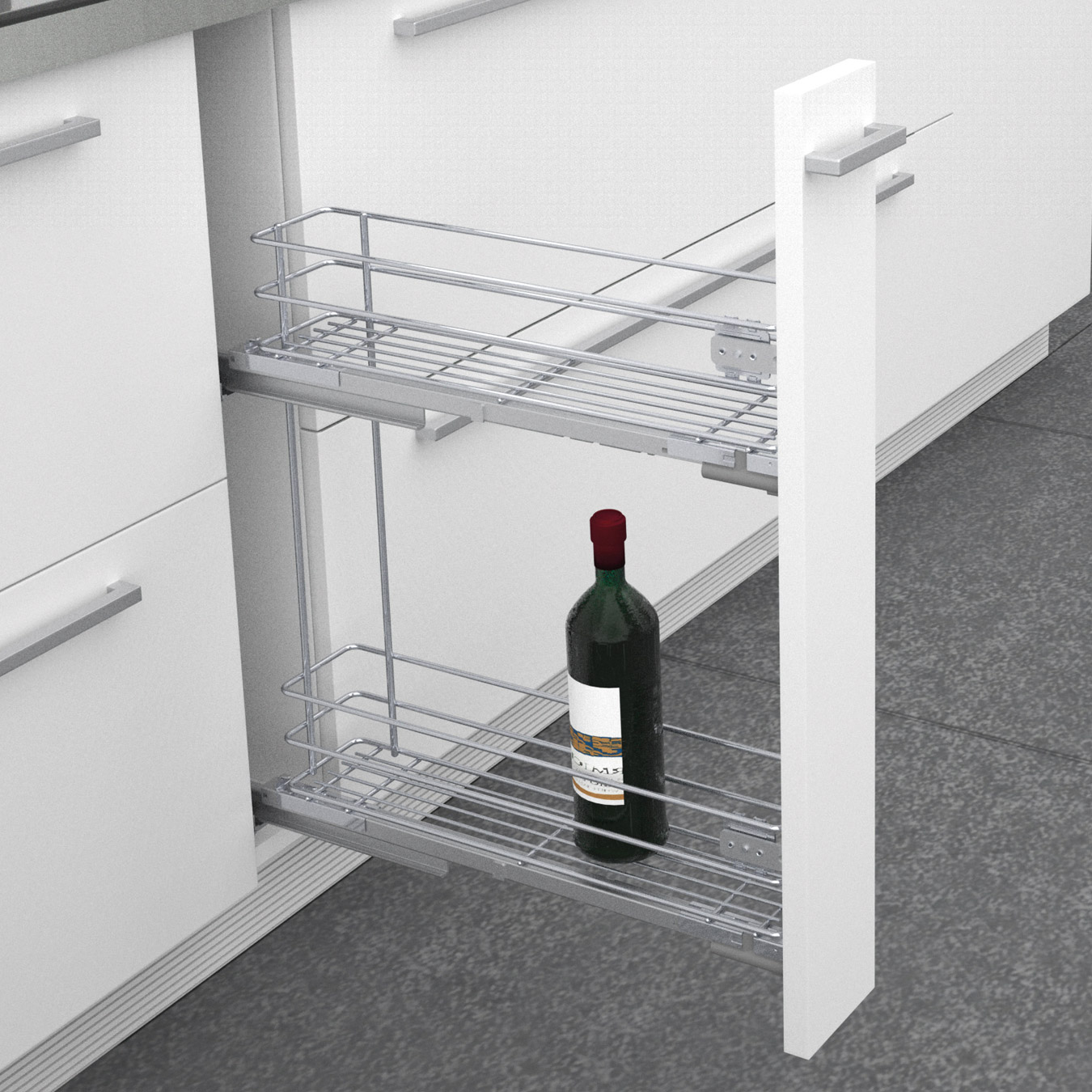

150mm Base Unit

150mm Base Unit Pullout

  • Features: Soft closing, full extension.

  • Options: Chrome shelves, partitioned version, towel rail version.

CodeDescriptionMin Carcase sizeLoading
BP150C150mm, pullout, chrome110x450x520mm10kg

Note: Carcase sizes given are internal dimensions in width x depth x height

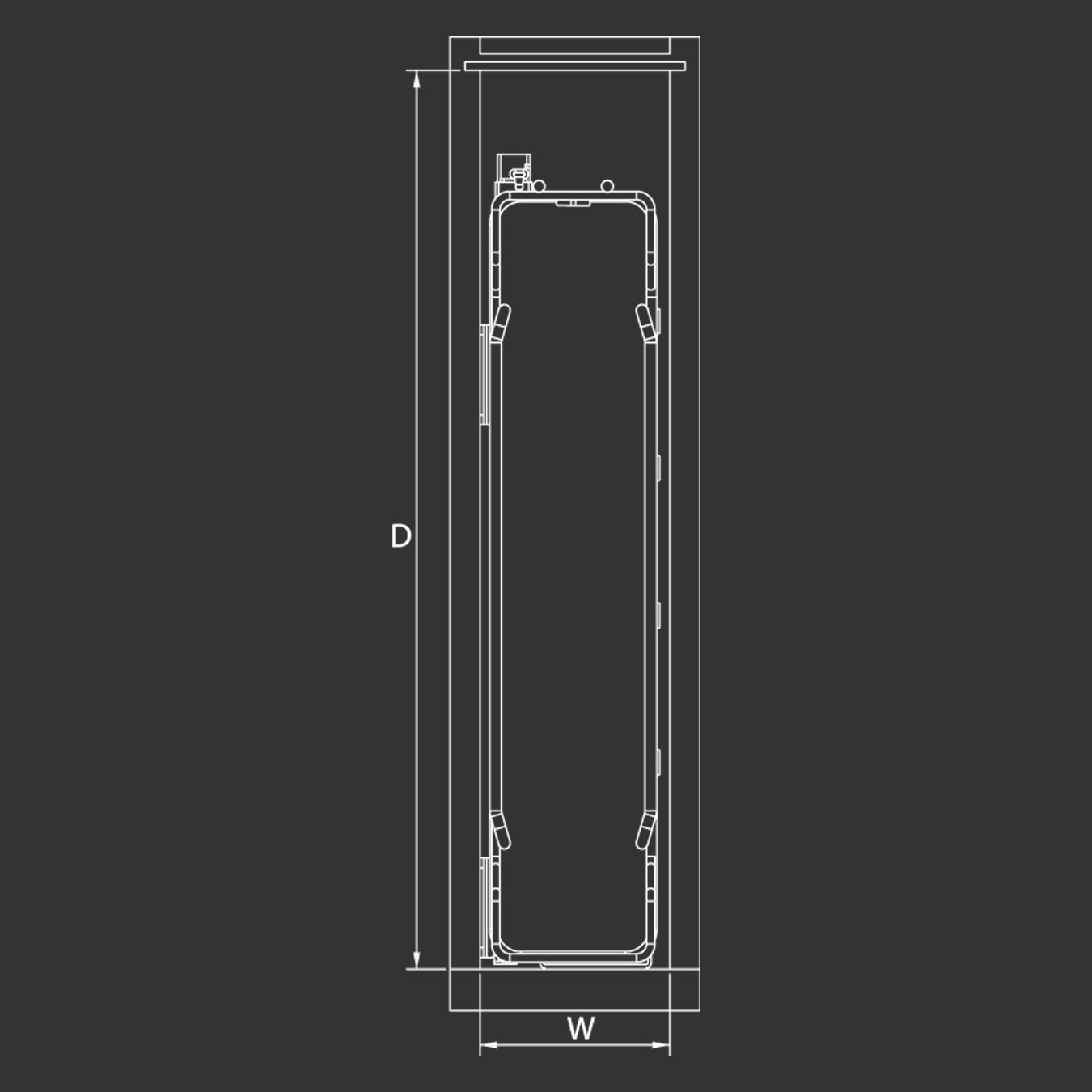

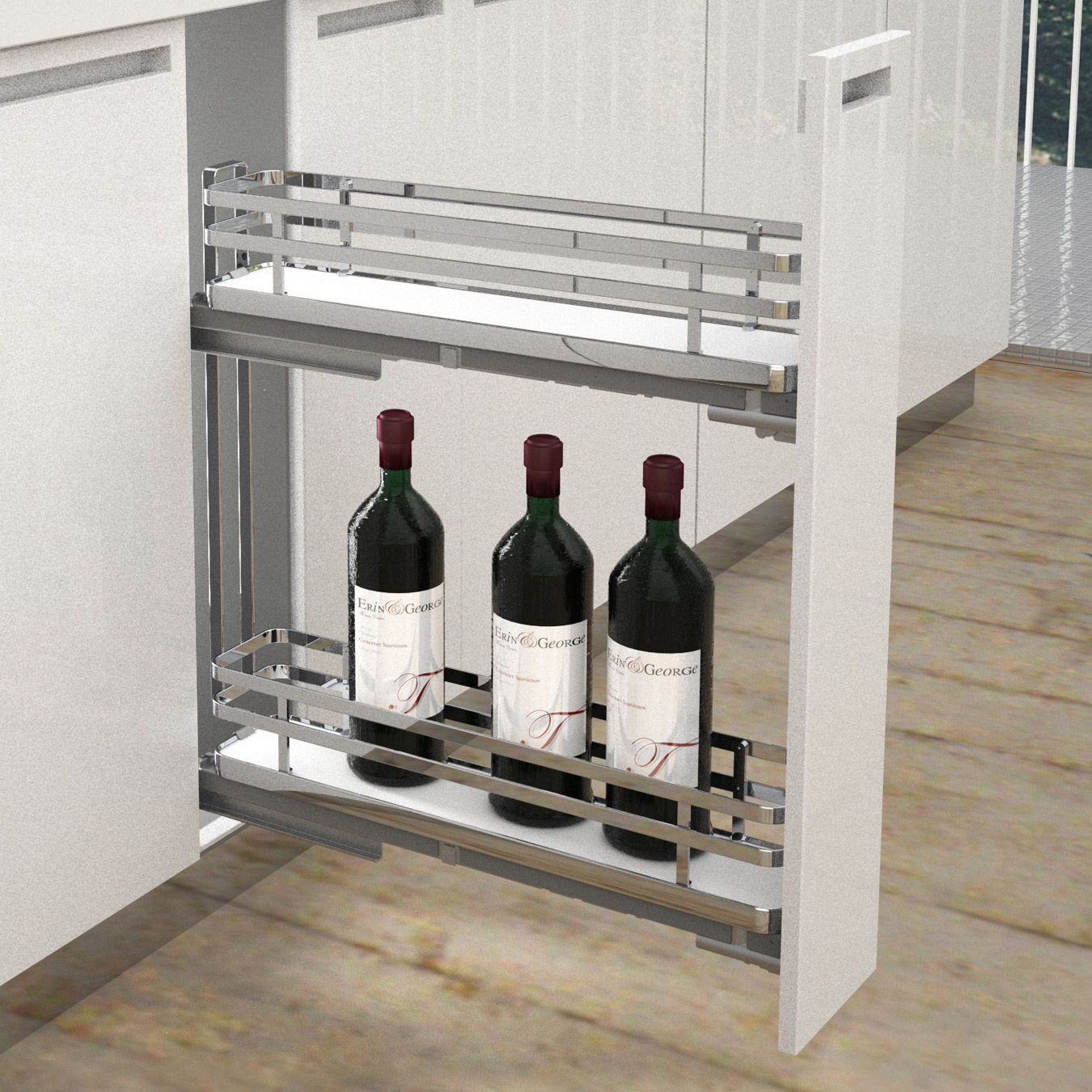

150mm Base Unit Plus

Infinity Plus 150mm Base Unit Pullout

  • Features: Soft-closing. Full extension
CodeDescriptionMin Carcase sizeLoading
BP150PL150mm, pullout, chrome110x450x520mm20kg

Note: Carcase sizes given are internal dimensions in width x depth x height

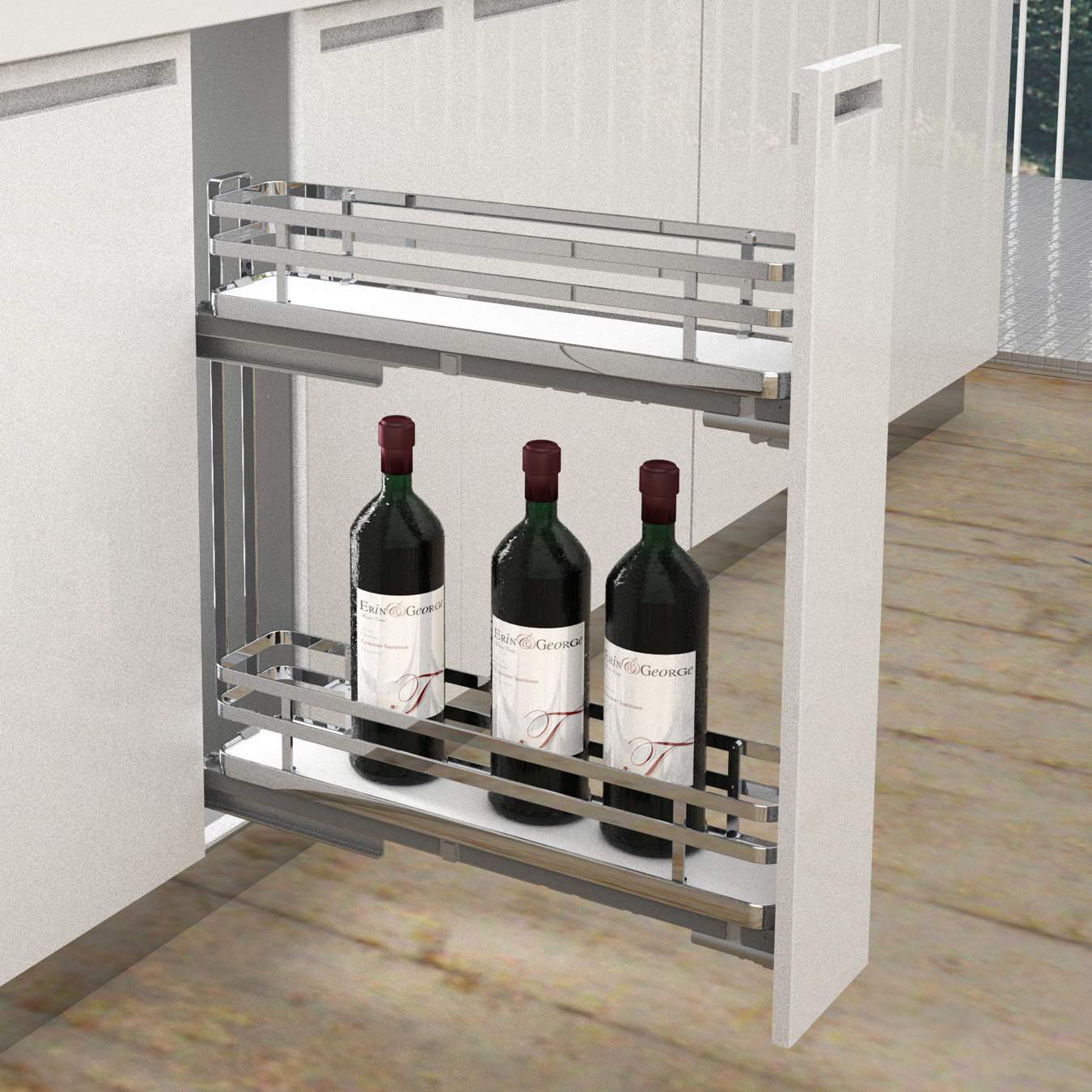

200mm Base Unit Plus

Infinity Plus 200mm Base Unit Pullout

  • Features: Soft closing, full extension.
CodeDescriptionMin Carcase sizeLoading
BP200PL200mm, base pullout160x450x520mm30kg

Note: Carcase sizes given are internal dimensions in width x depth x height

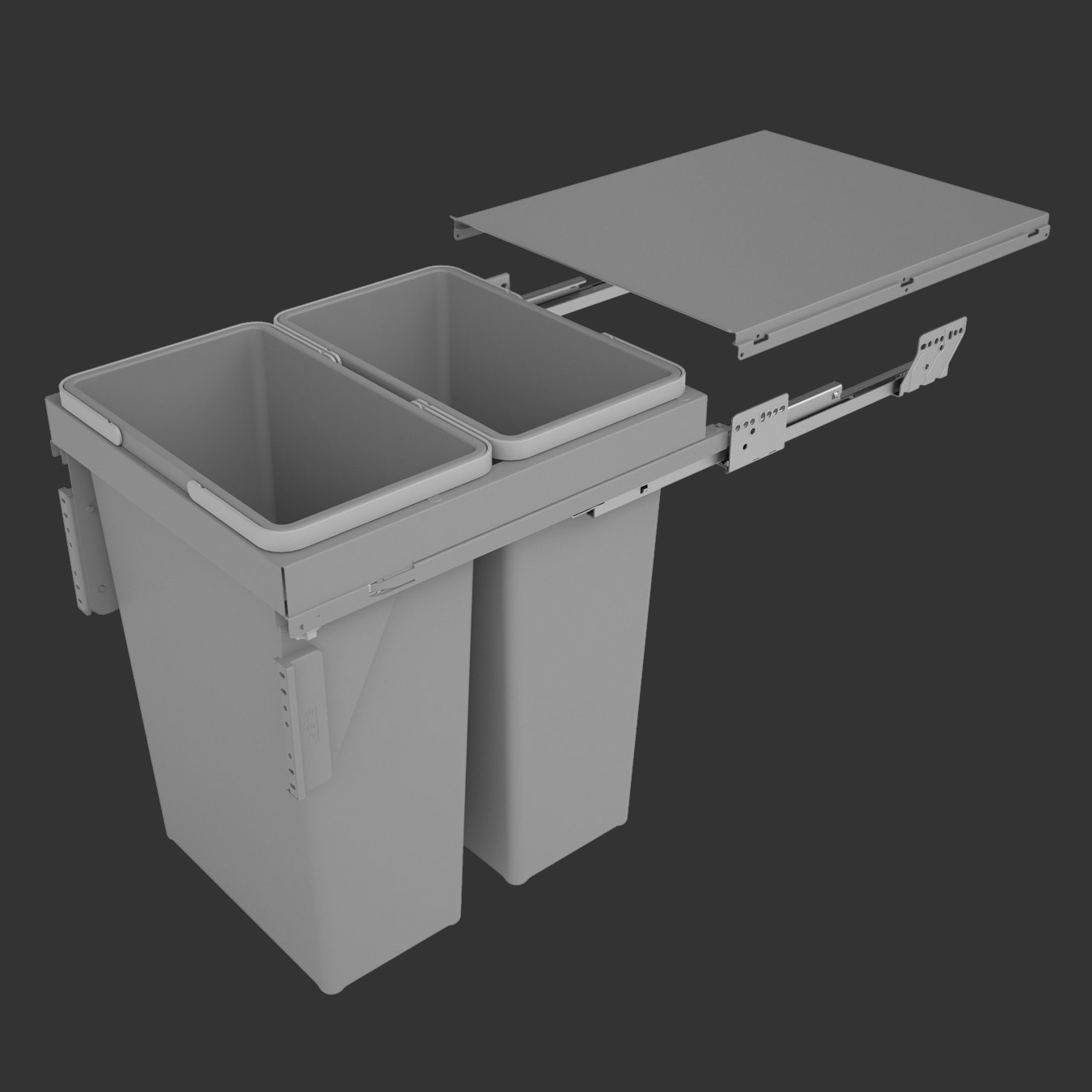

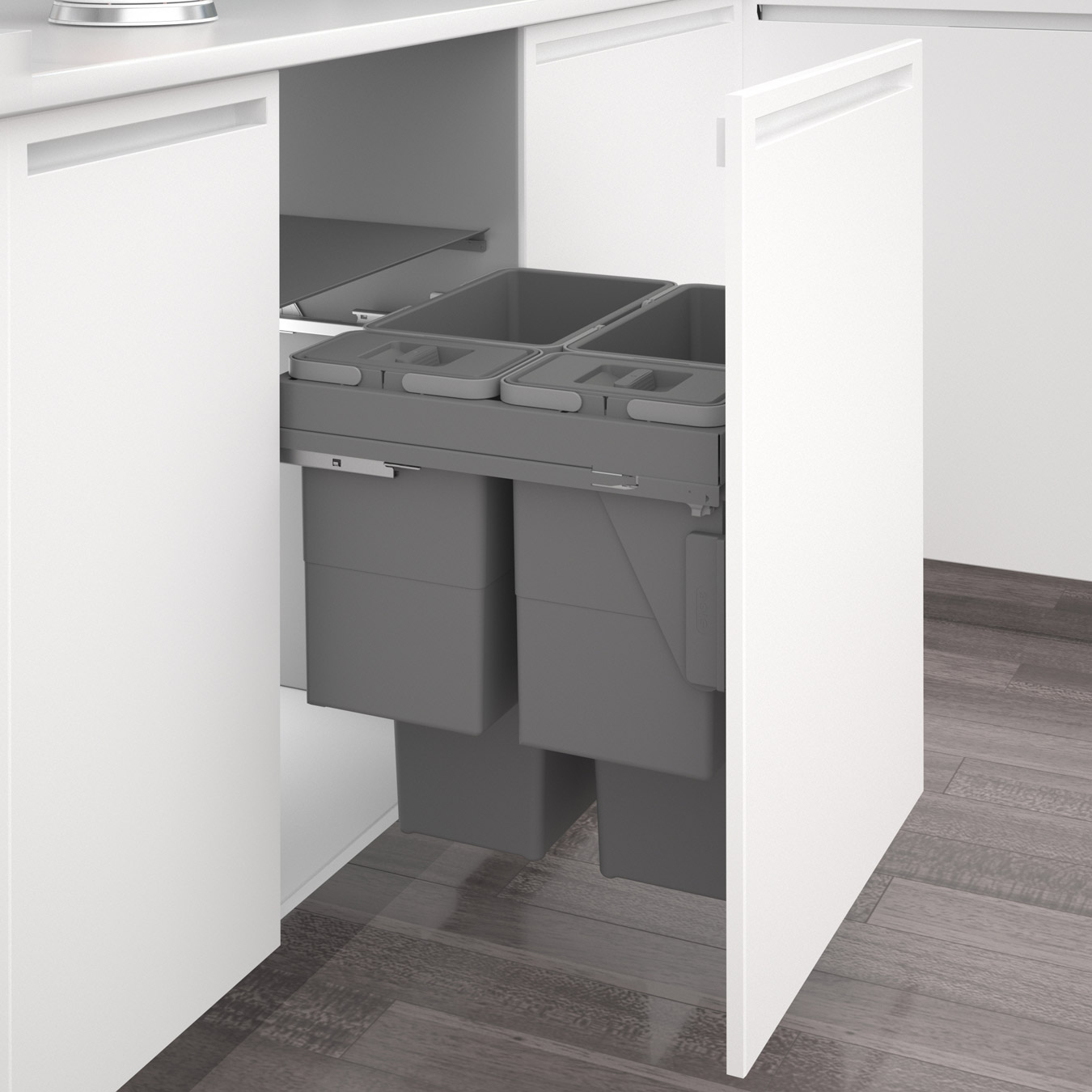

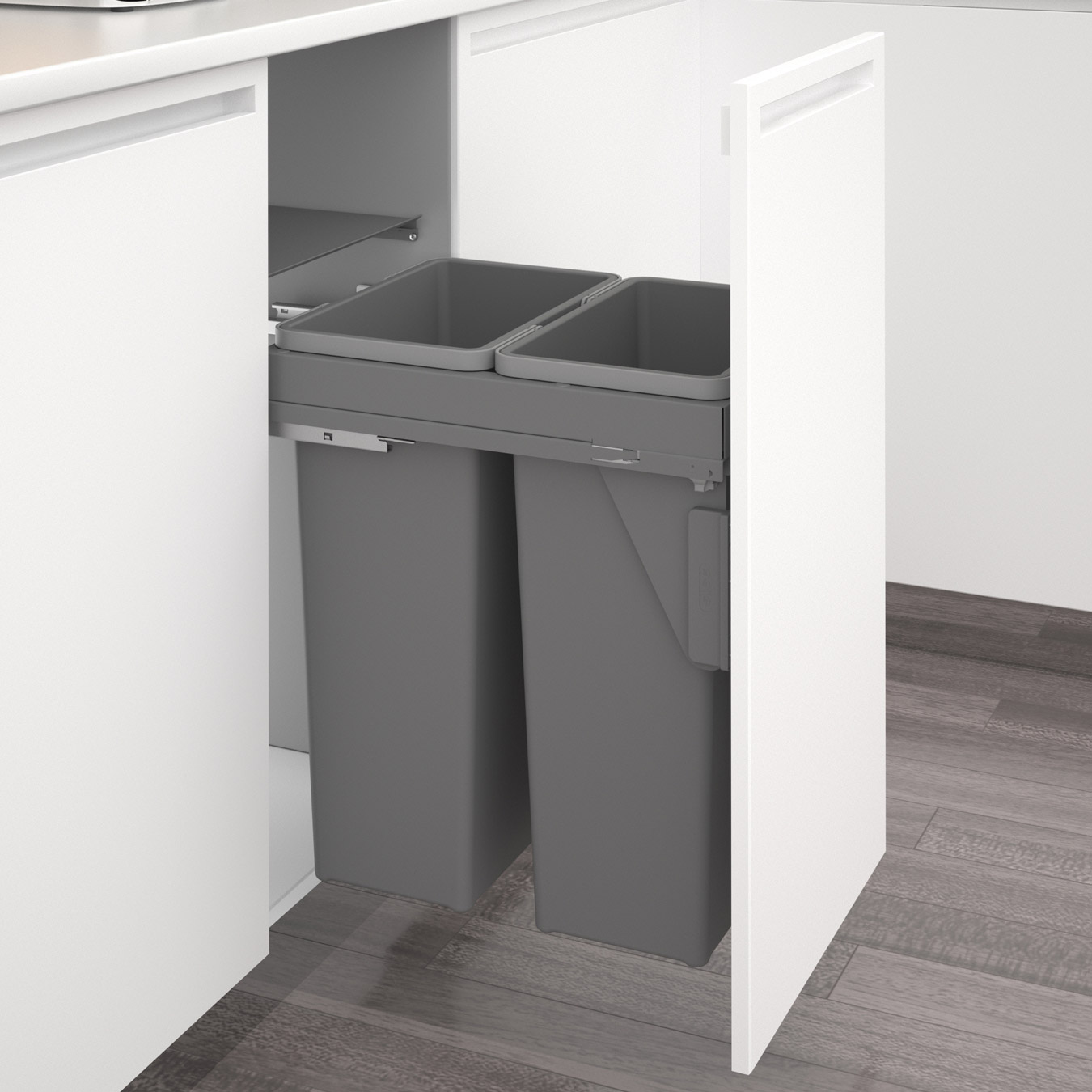

Waste Bins

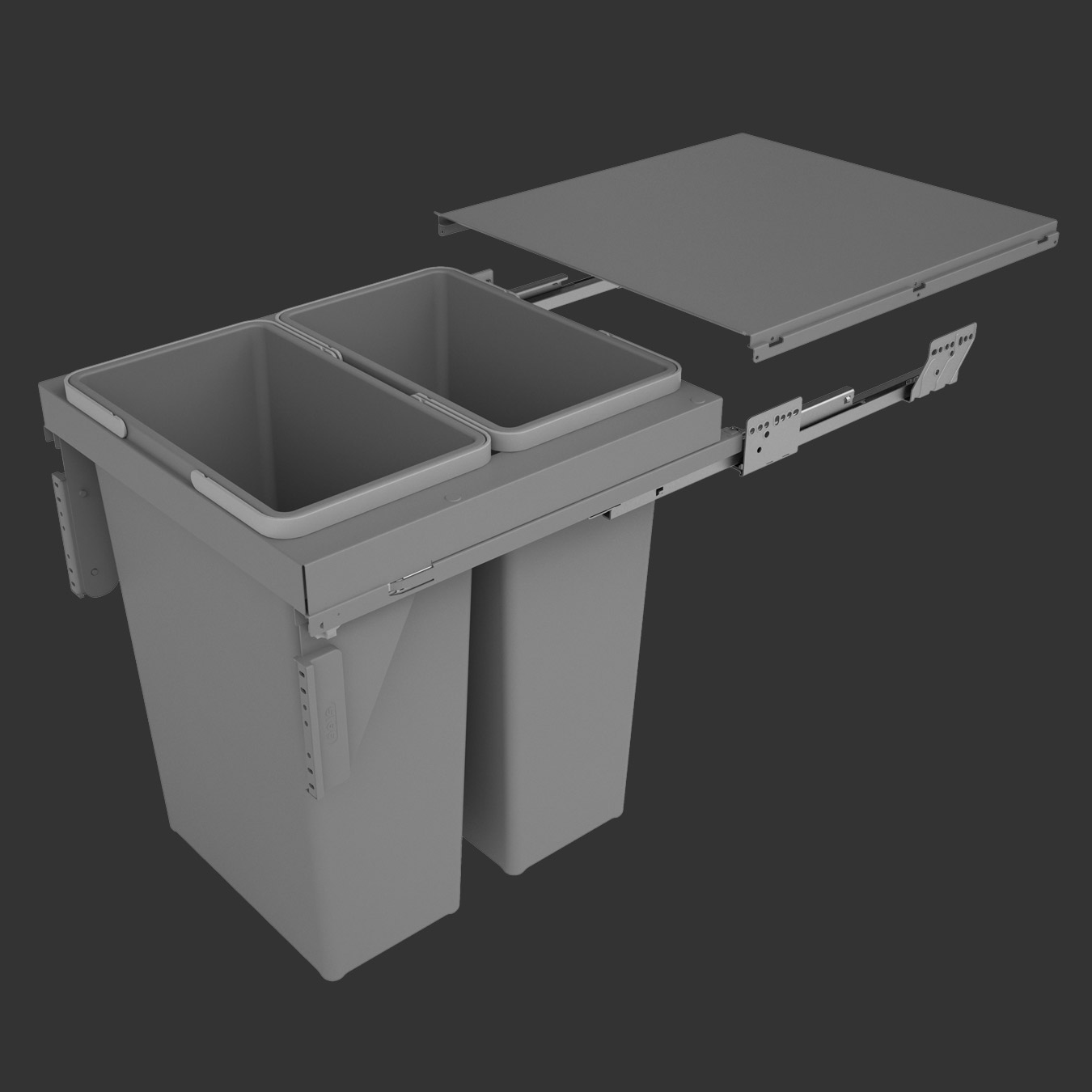

Quadrifoglio Waste Bin

  • Features: Soft closing. Full extension.
CodeDescriptionMin Carcase sizeLoading
QUSBINQuadrifoglio, 600mm, under-sink bin564x455x405mm36 litres
QCB300Quadrifoglio, 300mm, “cargo” bin, Anthracite264x505x560mm35 litres
QCB300/2BQuadrifoglio, 300mm, “cargo” bin, 2 bins, Anthracite264x505x560mm35 litres
QCB400Quadrifoglio, 400mm, “cargo” bin, 2 bins, Anthracite364x505x560mm35 litres
QCB450Quadrifoglio, 450mm, “cargo” bin, 2 bins, Anthracite364x505x560mm35 litres
QCB500Quadrifoglio, 500mm, “cargo” bin, 2 bins, Anthracite464x505x560mm70 litres
QCB600Quadrifoglio, 600mm, “cargo” bin, 2 bins, Anthracite564x505x560mm85 litres

Note: Carcase sizes given are internal dimensions in width x depth x height
